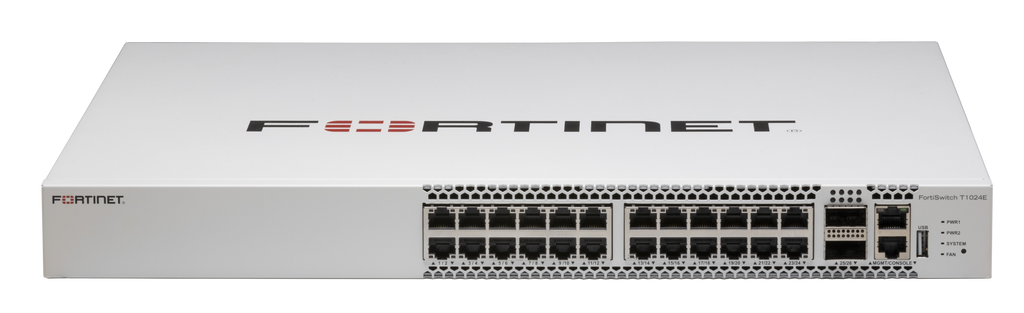

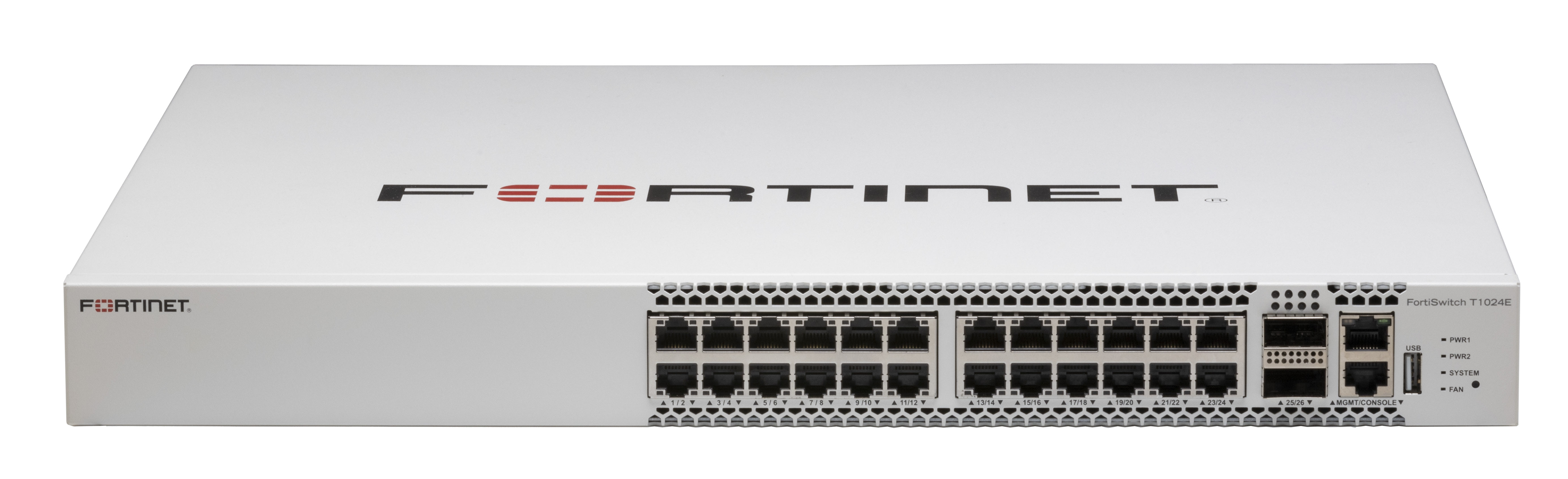

Fortinet FortiSwitch FS-T1024E (Campus Core & Data Center)
The FortiSwitch FS-T1024E is a high-performance campus core / data center switch built for dense aggregation, secure segmentation, and resilient operations. It supports standalone deployments or tight integration with FortiGate via FortiLink, giving you centralized visibility, policy enforcement, and simplified switching operations at scale.
Highlights
-
High throughput, low latency switching for demanding core/aggregation roles
-
Standalone or FortiLink (FortiGate-managed) deployment options
-
Zero-touch deployment with on-prem or cloud management options
-
Built-in foundation for segmentation, ZTNA / SASE architectures, and policy enforcement
-
Dual hot-swappable power supplies for resiliency
-
Compact 1RU form factor with flexible uplink media options via transceivers
Key specifications (FS-T1024E)
-
Interfaces: 24 x 10G/5G/2.5G/1G/100M BASE-T ports, plus 2 x 100G/40G QSFP28/QSFP+ uplinks
-
Switching capacity: 880 Gbps
-
Forwarding (64B): 1309 Mpps
-
Latency: ~ 1 µs
-
MAC address table: 64K
-
VLANs: 4K
-
Memory / Storage: 8GB DDR4, 8GB SSD (plus 32MB NOR flash)
-
Form factor: 1RU rack mount
-
Power: Dual hot-swappable AC, max consumption 128W
-
Cooling / acoustics: Front-to-back airflow, ~ 57.3 dBA
View data sheet: FortiSwitch Data Center Series Data Sheet
