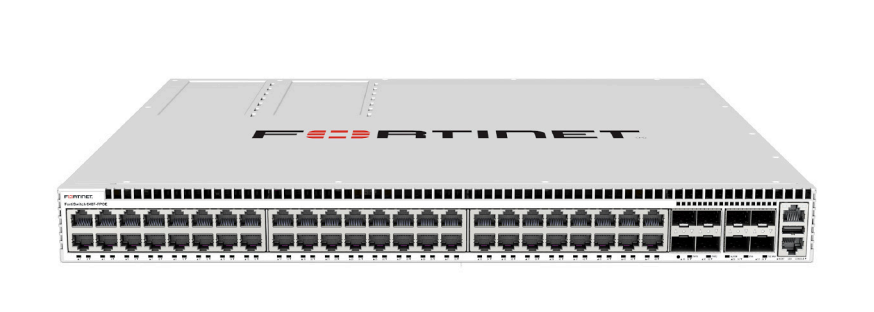

Fortinet FortiSwitch 648F-FPOE

Fortinet FortiSwitch 648F-FPOE

Fortinet FortiSwitch 648F-FPOE is a high-density full PoE+ secure access Ethernet switch in the FortiSwitch Secure Access family, designed for large enterprise campus, data-centre edge, and distributed deployments where comprehensive PoE power and extensive connectivity are required. When integrated with a FortiGate firewall via FortiLink, it provides centralized management, unified access control, and Security Fabric automation across wired LAN infrastructure.

---

Hardware Specifications

• 48 x GE RJ45 access ports all with PoE+ (802.3af/at) support

• 4 x 10GE SFP+ uplink ports

• 4 x 40GE QSFP+ uplink/stacking ports

• PoE Power Budget: 740 W total

• 1 x Dedicated 10/100 management port

• 1 x RJ-45 serial console port

• Form Factor: 1 RU rack mount

• AC built-in power supply

• Optional FRPS-740 redundant AC power support

• Fan-assisted cooling

---

Performance Summary

• Switching Capacity: Enterprise-class multi-hundreds of Gbps (duplex)

• Forwarding Rate: Very high throughput for dense access and uplinks

• MAC Address Table: Large enterprise-grade capacity

• VLAN Support: Up to 4 K

• Packet Buffers: Generous shared memory for burst traffic

• Memory & Flash: Enterprise-grade DRAM and NAND

• ACL Entries: High-capacity multi-stage ACL support

• Spanning Tree Instances: 32+

• Layer 3 Routing: Supported when integrated with FortiGate

---

Power & Deployment

FortiSwitch 648F-FPOE delivers PoE+ on all 48 access ports with a 740 W PoE budget, making it suitable for powering:

• Wireless access points (including multi-radio Wi-Fi 6/6E units)

• VoIP phones and unified communication devices

• High-resolution IP cameras and analytics sensors

• IoT endpoints and building automation devices

The high PoE budget eliminates the need for external injectors in dense powered deployments, simplifying cabling and reducing infrastructure complexity.

---

Security & Access Control

When managed via FortiLink with a FortiGate firewall, 648F-FPOE supports:

• Centralized VLAN configuration and dynamic port profiles

• Auto-discovery and unified switch provisioning

• Integrated NAC with device profiling and access enforcement

• IEEE 802.1X authentication (port-based and MAC-based)

• DHCP snooping and DHCP/ARP monitoring

• Dynamic ARP inspection

• Host quarantine on compromised switch ports

• Policy-based control of users and devices

• FortiGuard IoT device detection and security recommendations

• Security Fabric automation across security and switching domains

Standalone switch management via CLI and Web GUI is also supported.

---

Management Options

• FortiLink (FortiGate-managed)

• CLI and Web GUI

• SNMP v1/v2c/v3

• Syslog (UDP/TCP)

• REST APIs

• Automation stitching for orchestrated workflows

---

Environmental Specifications

• Operating Temperature: Enterprise range (0 °C to 45 °C)

• Humidity: 10 % to 90 % non-condensing

• Cooling: Fan-assisted

• Warranty: Fortinet Limited Lifetime Warranty

---

FortiSwitch 648F-FPOE delivers full-density PoE+ access and high-speed uplinks with centralized management and unified security control, making it ideal for enterprise campus, data centre edge, and dense distribution environments with extensive powered deployment needs.

View data sheet: FortiSwitch Secure Access Datasheet
