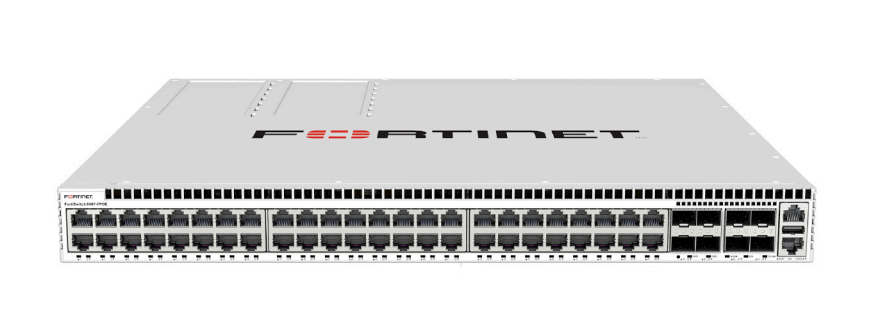

Fortinet FortiSwitch 648F

Fortinet FortiSwitch 648F

Fortinet FortiSwitch 648F is a high-density, enterprise-grade Layer 2/Layer 3 secure access Ethernet switch in the FortiSwitch Secure Access family designed for large campus core, data-centre edge, and distributed enterprise deployments. It provides extensive access port capacity, high-speed uplinks and stacking options, and integrates with FortiGate firewalls via FortiLink for centralized management, unified security policy enforcement, and enhanced network access control.

---

Hardware Specifications

• 48 x GE RJ45 access ports

• 4 x 10 GE SFP+ uplink ports

• 4 x 40 GE QSFP+ uplink/stacking ports

• 1 x Dedicated 10/100 management port

• 1 x RJ-45 serial console port

• Form Factor: 1 RU rack mount

• AC built-in power supply

• Optional FRPS-740 redundant AC power support

• Fan-assisted cooling

---

Performance Summary

• Switching Capacity: Enterprise-class multi-hundreds of Gbps (duplex)

• Forwarding Rate: Very high throughput to support dense access and uplinks

• MAC Address Table: Large enterprise-grade capacity

• VLAN Support: Up to 4 K

• Packet Buffers: Generous shared memory for burst traffic

• Memory & Flash: Enterprise-class DRAM and NAND

• ACL Entries: High-capacity multi-stage ACL support

• Spanning Tree Instances: 32+

• Layer 3 Routing: Supported when paired with FortiGate

---

Key Capabilities

High-Density Gigabit Access

• 48 x 1 GbE RJ45 ports provide robust connectivity for users, devices, and edge infrastructure.

High-Speed Uplinks & Stacking

• 4 x 10 GE SFP+ and 4 x 40 GE QSFP+ uplinks/stacking ports ensure high-capacity connections to core/distribution layers and facilitate flexible stacking.

Scalable Security & Policy Control

• With FortiLink, FortiSwitch 648F becomes a logical extension of the FortiGate firewall, enabling centralized VLAN/profile configuration, NAC, and policy enforcement across both switching and security domains.

---

Security & Access Control

When managed via FortiLink with a FortiGate firewall, 648F supports:

• Centralized VLAN configuration and dynamic port profiles

• Automatic switch discovery and unified provisioning

• Integrated NAC with device profiling and role-based enforcement

• IEEE 802.1X authentication (port- and MAC-based)

• DHCP snooping and DHCP/ARP monitoring

• Dynamic ARP inspection

• Host quarantine per compromised switch port

• Policy-based control of users and devices

• FortiGuard IoT detection and security recommendations

• Security Fabric automation

Standalone switching and management is also supported via CLI and Web GUI.

---

Management Options

• FortiLink (FortiGate-managed)

• CLI and Web GUI administration

• SNMP v1/v2c/v3

• Syslog (UDP/TCP)

• REST APIs

• Automation stitching tools

---

Environmental Specifications

• Operating Temperature: Enterprise range (0°C to ~45°C)

• Humidity: 10 % to 90 % non-condensing

• Cooling: Fan-assisted

• Warranty: Fortinet Limited Lifetime Warranty

---

FortiSwitch 648F delivers high-density, enterprise-grade access switching with robust uplinks and centralized secure management, ideal for large campus, core edge, and distributed enterprise deployments requiring both performance and unified policy control.

View data sheet: FortiSwitch Secure Access Datasheet
