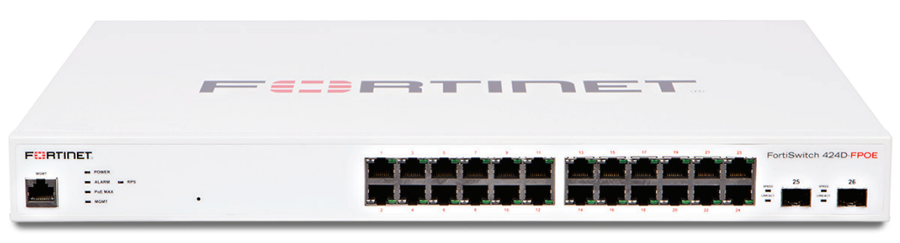

Fortinet FortiSwitch 424D-FPOE

Fortinet FortiSwitch 424D-FPOE (FS-424D-FPOE) Specifications (from available data sheet)

Hardware specifications

• Total network interfaces: 24x GE RJ45 + 2x 10GE SFP+ (SFP+ ports compatible with 1GE SFP)

• Dedicated management (10/100): 1

• RJ-45 serial console: 1

• Form factor: 1 RU rack mount

• PoE ports: 24 (802.3af/at)

• PoE power budget: 370 W

• MTBF: > 10 years

System specifications

• Switching capacity (duplex): 88 Gbps

• Packets per second (duplex): 131 Mpps

• MAC address storage: 16K

• Network latency: < 1 µs

• VLANs supported: 4K

• Link aggregation group size: 8

• Total LAG groups: Up to number of ports

• Packet buffers: 1.5 MB

• DRAM: 1 GB DDR3

• Flash: 128 MB

Dimensions & weight

• H x D x W (in): 1.73 x 12.2 x 17.5

• H x D x W (mm): 44 x 310 x 440

• Weight: 10.64 lbs (4.83 kg)

Environment & power

• Power required: 100240V AC, 50/60 Hz

• Power supply: AC built-in

• Redundant power: Optional FRPS-740

• Power consumption (avg / max): 397 W / 403 W

• Heat dissipation: 100 BTU/h

• Operating temperature: 32122°F (050°C)

• Storage temperature: -4158°F (-2070°C)

• Humidity: 1090% non-condensing
