Description

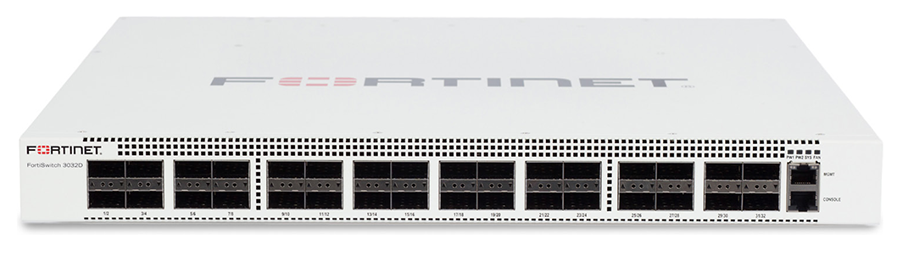

Fortinet FortiSwitch-3032D (FS-3032D)
The FortiSwitch-3032D is a high-performance Layer 2/3 Ethernet switch designed for demanding core, aggregation, and data centre deployments. Its part of Fortinets Data Center & Campus Core Series, delivering a secure, simple, and scalable switching platform with high throughput, resiliency, and dual power redundancy. These switches are ideal for high-bandwidth environments like Top of Rack (ToR) server connectivity or enterprise backbone networks.
Hardware & Connectivity
-
Total Network Interfaces:
32 x 40 GE QSFP+ ports for high-capacity uplinks and server connections
1 x 10/100/1000 Mbps service port for management -
Console: 1 x RJ-45 serial console port
-
Form Factor: 1 RU rack-mount appliance
-
Power Supplies: Dual hot-swappable AC power supplies
-
PoE: Not applicable (no PoE ports)
Performance & System Specs
-
Switching Capacity (Duplex): ~2,560 Gbps
-
Forwarding (Duplex): ~3,840 Mpps
-
MAC Address Table: ~288 K entries
-
Network Latency: ~< 800 ns
-
VLANs Supported: 4 K
-
Link Aggregation: Up to 24-port LAG support
-
Queues per Port: 8
-
Packet Buffers: ~12 MB
-
DRAM: ~2 GB
-
Flash: ~128 MB
(Note: these performance figures are based on widely cited third-party datasheet excerpts and typical datasheet specs for this model class.)
Dimensions & Environment
-
Dimensions (H x D x W): ~1.71³ x 18.11³ x 17.26³ (43.5 x 460 x 438.5 mm)
-
Weight: ~19.40 lbs (8.8 kg)
-
Power Required: 100240 V AC, 50/60 Hz
-
Power Consumption (Max): ~387 W
-
Heat Dissipation: ~656 BTU/h
-
Operating Temperature: 040 °C
-
Storage Temperature: 2570 °C
-
Humidity: 1090% non-condensing
-
MTBF: > 10 years
-
Certifications: FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Management & Features
-
Fully manageable Layer 2/3 switch with support for IPv4/IPv6 routing
-
Integration with FortiGate firewalls for FortiLink security fabric extension
-
High availability through dual hot-swappable power supplies
-
Advanced switching features including VLANs, LAG, STP, and more
-
Designed for high-throughput environments such as data centres and core networks
Typical Use Cases
-
Data centre Top of Rack (ToR) switching
-
Enterprise core and aggregation layer
-
High-bandwidth backbone infrastructure
-
Secure fabric integration with FortiGate firewalls
View data sheet: FortiSwitch Data Center Series Data Sheet
