Description

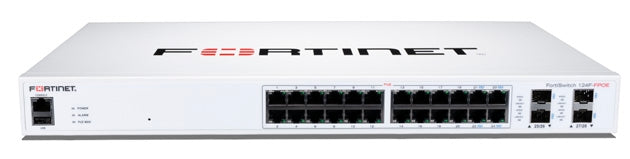

Fortinet FortiSwitch 124F-FPOE
Fortinet FortiSwitch 124F-FPOE is a high-power PoE+ Layer 2 secure access switch designed for enterprise branches and small-to-medium business environments that require full PoE coverage across all access ports.
Integrated with FortiGate via FortiLink, the 124F-FPOE delivers centralized switching, network segmentation, and policy enforcement as part of the Fortinet Security Fabric.
Hardware Specifications
-
24 x GE RJ45 access ports
-
4 x 10GE SFP+ uplink ports
-
24 x PoE+ ports (802.3af/at)
-
PoE Power Budget: 370W
-
1 x RJ-45 serial console port
-
1 RU rack-mount form factor
-
AC built-in power supply
Performance
-
Switching Capacity: 128 Gbps (duplex)
-
Forwarding Rate: 190 Mpps
-
Network Latency: < 1 ¼s
-
MAC Address Table: 32K
-
VLAN Support: 4K
-
Packet Buffer: 2 MB
-
Memory: 512 MB DDR3
-
Flash: 64 MB
-
ACL Entries: 640
-
Spanning Tree Instances: 32
Power & Deployment
The 124F-FPOE provides PoE+ power on all 24 access ports, making it ideal for:
-
High-density wireless access point deployments
-
IP camera installations
-
VoIP phone rollouts
-
IoT and edge device environments
With a 370W PoE budget, it supports full device coverage without external injectors.
Security & Access Control
When managed through FortiLink with FortiGate:
-
Centralized VLAN configuration
-
Dynamic port profiles
-
Auto discovery of switches
-
Integrated NAC functionality
-
802.1X authentication (port-based and MAC-based)
-
DHCP snooping
-
Dynamic ARP inspection
-
Host quarantine on switch port
-
User- and device-based policy enforcement
-
Security Fabric automation
Management Options
-
FortiLink management (via FortiGate)
-
Standalone CLI and Web GUI
-
SNMP v1/v2c/v3
-
Syslog (UDP/TCP)
-
REST API support
-
Automation stitches
Environmental Specifications
-
Operating Temperature: 0°C to 45°C
-
Humidity: 10% to 90% non-condensing
-
Airflow Direction: Side-to-back
-
Warranty: Fortinet Limited Lifetime Warranty
View data sheet: FortiSwitch Secure Access Datasheet
