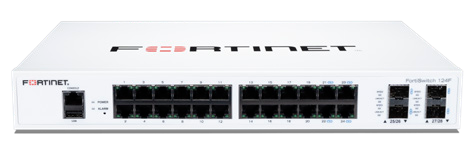

Fortinet FortiSwitch 124F

Fortinet FortiSwitch 124F

Fortinet FortiSwitch 124F is a Layer 2 secure access switch designed for enterprise branch offices and small-to-medium businesses. It combines high-performance Ethernet switching with integrated security and centralized management through FortiLink.

Hardware Specifications

• 24 x GE RJ45 access ports

• 4 x 10GE SFP+ uplink ports

• 1 x RJ-45 serial console port

• 1 RU rack mount form factor

• Fanless design

• AC built-in power supply

Performance

• Switching Capacity: 128 Gbps (duplex)

• Forwarding Rate: 190 Mpps

• Network Latency: < 1 ¼s

• MAC Address Table: 32K

• VLAN Support: 4K

• Packet Buffer: 2 MB

• Memory: 512 MB DDR3

• Flash: 64 MB

• ACL Entries: 640

• Spanning Tree Instances: 32

Security & Management

When integrated with FortiGate using FortiLink, the 124F provides:

• Centralized VLAN configuration

• Dynamic port profiles

• Automated device detection

• Integrated NAC functionality

• 802.1X authentication (port & MAC based)

• DHCP snooping

• Dynamic ARP inspection

• Host quarantine capabilities

• Security Fabric automation

• FortiLink stacking support

Management options include:

• FortiLink (via FortiGate)

• Standalone CLI/Web GUI

• SNMP v1/v2c/v3

• REST APIs

• Syslog (UDP/TCP)

Environmental

• Operating Temperature: 0°C to 45°C

• Humidity: 10% to 90% non-condensing

• Airflow: Side-to-side

• Limited lifetime warranty



View data sheet here: FortiSwitch Secure Access Datasheet
