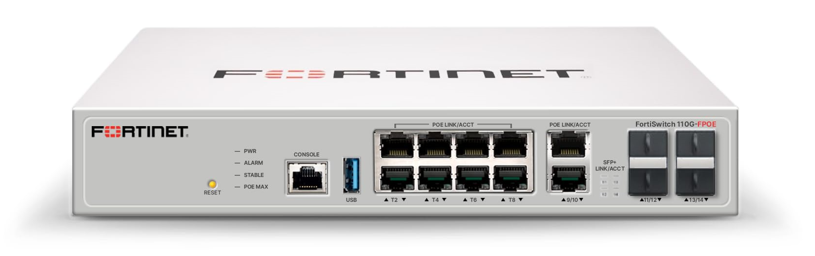

Fortinet FortiSwitch 110G-FPOE

Fortinet FortiSwitch 110G-FPOE

Fortinet FortiSwitch 110G-FPOE is a compact, high-performance PoE+capable secure access switch in the FortiSwitch Secure Access family, designed for small offices, branch sites, and edge environments that require multi-gigabit access and flexible uplinks. With FortiLink integration to FortiGate firewalls, it delivers centralized management, simplified deployment, and secure policy enforcement across wired LAN access.

---

Hardware Specifications

• 2 x Multi-Gigabit (5G/2.5G/1G/100M) RJ45 access ports with PoE bt (802.3bt)

• 8 x 1GbE RJ45 access ports with PoE af/at

• 4 x 10GE SFP+ uplink ports

• PoE Power Budget: 200 W

• Form Factor: Fanless desktop (with optional rack bracket)

• AC-built power supply (100240 V, 50/60 Hz)

• Dedicated PoE capable ports

---

Performance Summary

• Switching Capacity: 140 Gbps (duplex)

• Forwarding Rate: 208 Mpps

• MAC Address Storage: 32K

• VLAN Support: 4K

• Packet Buffers: 2 MB

• Memory: 1 GB DDR4

• Flash: 8 MB NOR

• ACL Entries: 640

• Spanning Tree Instances: 32

---

Power & Port Deployment

FortiSwitch 110G-FPOE provides a flexible mix of high-speed access and PoE power:

• Multi-gigabit PoE bt ports (5G/2.5G) for Wi-Fi 6/6E APs or high-speed endpoints

• 8 x 1GbE PoE af/at ports for IP phones, cameras, sensors, and IoT

• 200 W PoE budget supports a mix of powered devices without external injectors

---

Security & Access Control

When integrated via FortiLink with a FortiGate firewall, the 110G-FPOE provides:

• Centralized VLAN configuration and dynamic port profiles

• Auto-discovery and unified provisioning of switches

• Built-in network access control (NAC) with device profiling and policy enforcement

• IEEE 802.1X authentication (port-based and MAC-based)

• DHCP snooping and DHCP/ARP monitor

• Dynamic ARP inspection

• Host quarantine per switch port

• Policy-based control of users and devices

• Security Fabric automation and recommendations

Standalone switching is supported via CLI and Web GUI.

---

Management Options

• FortiLink (FortiGate-managed)

• CLI and Web GUI

• SNMP v1/v2c/v3

• Syslog (UDP/TCP)

• REST API

• Automation stitching for orchestrated workflows

---

Environmental Specifications

• Operating Temperature: 32 °F to 113 °F (0 °C to 45 °C)

• Humidity: 10 % to 90 % non-condensing

• Airflow: Fanless (quiet operation)

• Warranty: Fortinet Limited Lifetime Warranty

---

FortiSwitch 110G-FPOE delivers multi-gigabit PoE+ expansion and flexible uplinks in a compact form factor ideal for modern small office, branch, and edge environments where speed and power delivery are needed together.

View data sheet: FortiSwitch Secure Access Datasheet
