Description

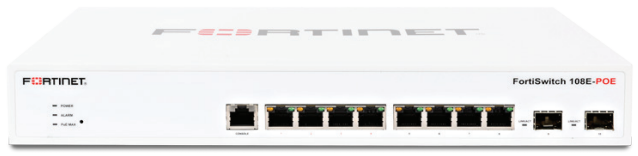

Fortinet FortiSwitch 108E-POE (FS-108E-POE)
The FortiSwitch 108E-POE is a secure, high-performance Layer 2 Ethernet access switch that delivers flexible connectivity and Power over Ethernet (PoE) power for modern enterprise networks. Designed to fit seamlessly into campus, branch, or edge deployments, it combines reliable switching, advanced PoE capabilities, and simplified managementmaking it ideal for powering and connecting devices such as IP phones, wireless access points, and cameras.
Flexible Connectivity & Power Delivery
The FortiSwitch 108E-POE supports essential access layer networking with integrated PoE:
-
8 x 1G/100M/10M RJ45 ports with PoE
-
2 x 1G SFP ports for uplink or fiber extension
-
Power over Ethernet: PoE (802.3af/at) delivering data and power over a single cable
This configuration enables both connectivity and power to be delivered to edge devices such as VoIP phones, wireless access points, security cameras, and IoT endpoints without the need for separate power infrastructure.
Secure Networking & FortiLink Integration
When deployed with a FortiGate next-generation firewall, FortiLink enables the FortiSwitch 108E-POE to become a logical extension of the FortiGate and a part of the Fortinet Security Fabric. This converged architecture delivers:
-
Centralized VLAN and policy configuration
-
Automated switch discovery and provisioning
-
Integrated access control with 802.1X authentication (port-based, MAC-based, MAB)
-
Device detection and enhanced visibility
-
Unified management across LAN and security
This Security-Driven Networking approach simplifies operations while strengthening access layer protection.
Enterprise-Grade Switching Features
FortiSwitch 108E-POE supports a robust set of Layer 2 capabilities:
-
Dynamic VLANs and tagging (IEEE 802.1Q)
-
Link Aggregation with LACP
-
Spanning Tree (RSTP/MSTP)
-
IGMP snooping and multicast management
-
Auto-negotiation for speed and duplex
-
Jumbo frame and flow control support
These features ensure efficient network segmentation, performance, and resiliency across access deployments.
Operational Simplicity & Management
The switch supports streamlined deployment and manageable operation with:
-
Zero-touch deployment and automated configuration
-
FortiCloud and on-premises management options
-
Web GUI, CLI, and REST API support
-
SNMP v1/v2c/v3, RMON, Syslog, packet capture, and link monitoring
-
IPv4/IPv6 management
These capabilities reduce administrative overhead and provide rich visibility and control across your network infrastructure.
High Availability & Resilience
FortiSwitch 108E-POE enhances availability with features like:
-
Auto-inter-switch links via FortiLink stacking
-
Dynamic port profiles
-
Centralized firmware management via FortiLink
-
Redundancy with link aggregation
View data sheet; FortiSwitch Secure Access Datasheet
