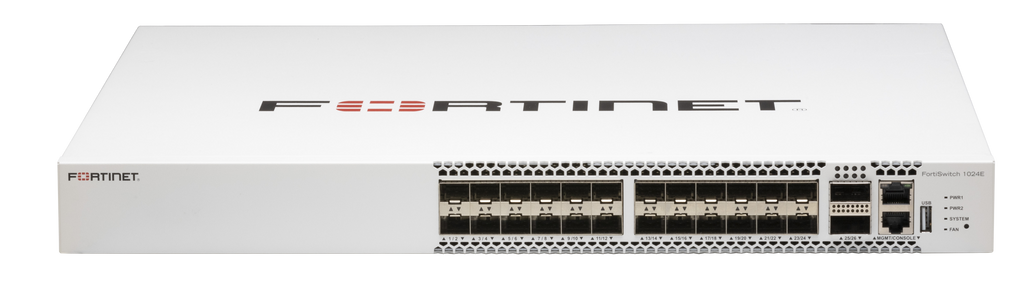

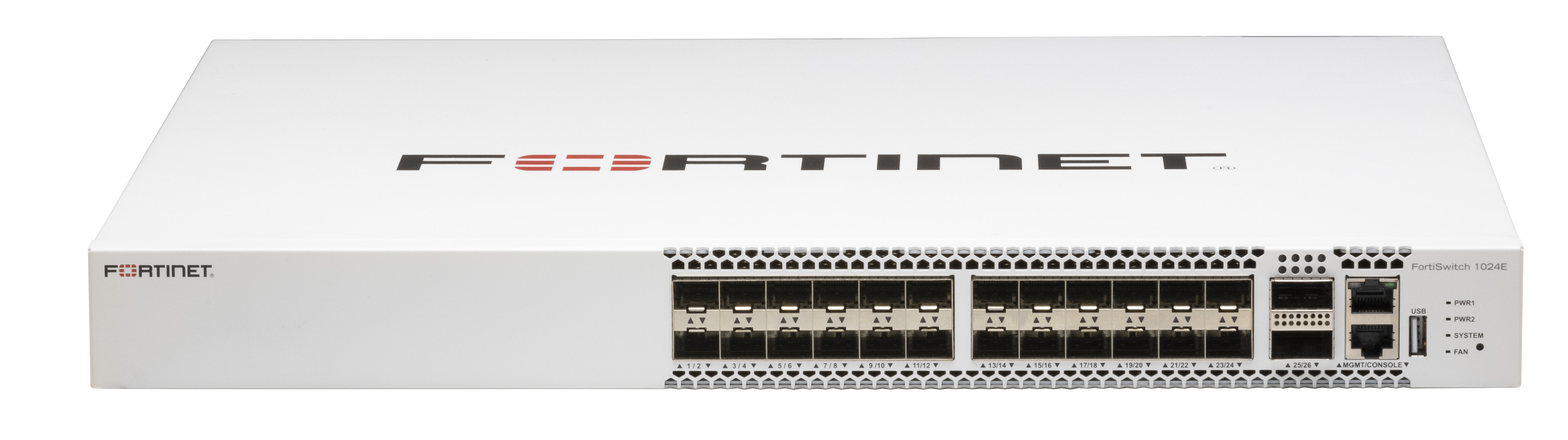

Fortinet FortiSwitch 1024E
Fortinet FortiSwitch 1024E is a high-density, enterprise-class Layer 2/Layer 3 secure access Ethernet switch in the FortiSwitch Secure Access family, engineered for large campus cores, data-centre edge, and distributed enterprise environments that demand massive port count, high throughput, and centralized policy control. When integrated with a FortiGate firewall via FortiLink, it provides unified management, secure access control, and streamlined operations across the wired LAN infrastructure.
Hardware Specifications
-
24 x Multi-Gigabit RJ45 access ports (2.5G/1G/100M/10M)
-
24 x GE RJ45 access ports
-
8 x 10 GE SFP+ uplink ports
-
4 x 40 GE QSFP+ uplink/stacking ports
-
1 x Dedicated 10/100 management port
-
1 x RJ-45 serial console port
-
Form Factor: 1 RU rack mount
-
AC built-in power supply
-
Optional FRPS-740 redundant AC power support
-
Fan-assisted cooling
Performance Summary
-
Switching Capacity: Enterprise-class multi-terabit (duplex)
-
Forwarding Rate: Very high packets-per-second (suitable for dense access+uplinks)
-
MAC Address Table: Large enterprise-grade capacity
-
VLAN Support: Up to 4 K
-
Packet Buffers: Generous shared memory
-
Memory & Flash: Enterprise DRAM and NAND storage
-
ACL Entries: High-capacity ACL support
-
Spanning Tree Instances: 32+
-
Layer 3 Routing: Supported when paired with FortiGate
Key Capabilities
Massive Port Density
High-Speed Uplinks & Stacking
FortiLink Integration
Security & Access Control
When managed via FortiLink with a FortiGate firewall, FortiSwitch 1024E supports:
-
Centralized VLAN and dynamic port profile configuration
-
Auto-discovery and unified switch provisioning
-
Integrated NAC with device profiling and enforcement
-
IEEE 802.1X authentication (port-based and MAC-based)
-
DHCP snooping and DHCP/ARP monitoring
-
Dynamic ARP inspection
-
Host quarantine on compromised switch ports
-
Policy-based access control for users and devices
-
FortiGuard IoT detection and security recommendations
-
Security Fabric automation
Standalone switch management via CLI and Web GUI is also supported.
Management Options
Environmental Specifications
-
Operating Temperature: Enterprise range (0°C to 45°C)
-
Humidity: 10 % to 90 % non-condensing
-
Cooling: Fan-assisted
-
Warranty: Fortinet Limited Lifetime Warranty
FortiSwitch 1024E delivers high-density multi-gigabit and Gigabit access with ultra-high uplinks and centralized secure management, making it ideal for enterprise campuses, data-centre edges, and large distributed environments with demanding performance and policy control needs.
View data sheet: FortiSwitch Secure Access Datasheet
