Description

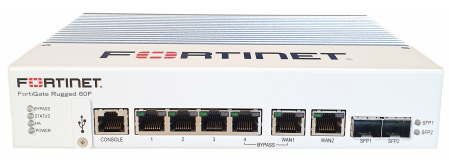

FortiGate Rugged 60F-3G4G — Industrial NGFW with 3G/4G LTE Cellular WAN and GPS
The FortiGate Rugged 60F-3G4G is a fanless, ruggedised desktop/DIN-rail NGFW delivering 950 Mbps IPS and 500 Mbps threat protection — built on FortiSoC4 ASIC for industrial OT environments requiring cellular WAN failover, GPS, and certified operation across extreme temperatures, power substations, rolling stock, and maritime deployments.
Key Performance
- 950 Mbps IPS throughput
- 550 Mbps NGFW throughput
- 500 Mbps Threat Protection throughput
- 6 Gbps firewall throughput (1518/512 byte)
- 3.5 Gbps IPsec VPN throughput
- 460 Mbps SSL inspection throughput
- 400 Mbps SSL-VPN throughput (FortiOS 7.2.x LTS; not supported on 7.6.0+)
- 600,000 concurrent sessions
- 19,000 new sessions per second
- 3.10 Ç?¶æs firewall latency
- 5,000 firewall policies
Interfaces & Hardware
- 4x GE RJ45 ports
- 2x shared GE RJ45/SFP slots
- 1x GE RJ45 bypass port pair (PORT4 and WAN1)
- 1x DB9 serial port (data)
- 1x RJ45 Console port
- 1x USB port
- Embedded 3G/4G LTE wireless WAN module (Sierra Wireless EM7565)
- 2x SIM slots (Active/Passive)
- 2x external SMA WWAN antennas
- Passive GPS with 1x external SMA GPS antenna
- Trusted Platform Module (TPM)
- Redundant dual DC power inputs (12V—125V DC)
- Fanless design, desktop/DIN-rail/wall mount form factor
- IP20 rated
Cellular Connectivity
- LTE bands: B1—B5, B7—B9, B12—B13, B18—B20, B26, B28—B30, B32, B41—B43, B46, B48, B66
- UMTS/HSPA+: B1—B6, B8—B9, B29
- Maximum Tx power: 20 dBm
- MIMO and diversity antenna support
- GNSS bias output for active GPS antenna
Capacity
- Up to 30 FortiAPs (10 tunnel mode)
- Up to 500 FortiTokens
- Up to 24 FortiSwitches
- 10 virtual domains (default/maximum)
- 200 gateway-to-gateway IPsec VPN tunnels
- 500 client-to-gateway IPsec VPN tunnels
- Active-Active, Active-Passive, and Clustering HA
OT & Industrial Security
- Deep packet inspection for 80+ OT applications and protocols
- OT-centric IPS with virtual patching and vulnerability shielding
- Network segmentation and microsegmentation for security zones and conduits
- North/South and East/West traffic monitoring
- FortiGuard OT Security Service: detection, vulnerability correlation, virtual patching, protocol decoders
- FortiLink integration for converged switch and access point management
Security Features
- FortiGuard AI-powered IPS with virtual patching
- Anti-malware: AV, sandboxing, AI-based heuristics
- Web/DNS filtering across 300M+ URL database
- Data Loss Prevention (DLP)
- Real-time SSL/TLS 1.3 inspection
- Universal ZTNA — agent-based or agentless
- Full SD-WAN built into FortiOS
Management
- Managed via FortiManager, FortiGate Cloud, or FortiManager Cloud
- FortiAnalyzer Cloud and FortiGuard SOCaaS available
- GenAI-assisted operations via FortiAI
Industry Certifications
- IEC 61850-3 and IEEE 1613 (electric power industry)
- IEC 60945 and DNV GL Type Approved (maritime)
- EN 50121/50155 — EMC and shock/vibration compliant (rolling stock)
- FCC Part 15 Class A, CE, RCM, VCCI, UL/cUL, CB
Environment
- Operating temperature: -40°C to 75°C
- Storage temperature: -40°C to 85°C
- Power consumption: 16W average / 24W max
- Operating altitude: up to 3,048m
View data sheet: FortiGate Rugged Series Data Sheet
