Description

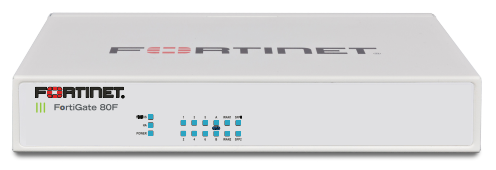

Fortinet FortiGate 80F-Bypass (FG-80F-Bypass)
This is the 80F branch NGFW + SD-WAN platform, but with one key difference: it supports a hardware LAN bypass pair so traffic can keep flowing if the appliance loses power / fails (common requirement for must-stay-up branches).
What Bypass means (in plain English)
-
The FG-80F-Bypass can be configured with 1x bypass GE RJ45 port pair.
-
In the datasheet, that bypass pair is WAN1 & Port1 (default configuration).
-
Purpose: maintain link continuity during failure scenarios (helps minimize downtime during hardware/power events).
Performance (Enterprise Traffic Mix)
Same as the 80F family:
-
IPS: up to 1.4 Gbps
-
NGFW: up to 1.0 Gbps
-
Threat Protection: up to 900 Mbps
Ports / interfaces (FG-80F-Bypass)
From your table:
-
2x GE RJ45/SFP shared media pairs (WAN flexibility: copper or fiber handoff)
-
6x GE RJ45 internal ports
-
2x GE RJ45 FortiLink ports (default)
-
1x USB 3.0
-
1x Console (RJ45)
-
Bypass pair: (WAN1 & Port1)
Also included across the series:
-
TPM:
-
BLE:
-
Form factor: desktop / wall mount / rack tray
Capacity & VPN (same baseline 80F platform)
-
Firewall throughput: 10 / 10 / 7 Gbps (1518 / 512 / 64-byte UDP)
-
Latency: 3.23 ¼s
-
Sessions: 1.5M concurrent
-
New sessions/sec: 45,000
-
IPsec VPN: 6.5 Gbps
-
SSL-VPN throughput: 950 Mbps
-
Recommended SSL-VPN users: 200
-
Max FortiAPs: 96 total / 48 tunnel
-
Max FortiSwitches: 24
-
HA: Active-Active / Active-Passive / Clustering
View data sheet: FortiGate FortiWiFi 80F Series Data Sheet
