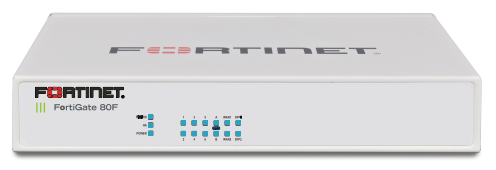

Fortinet FortiGate / FortiWiFi 80F Series (FG-80F family)
This is the feature-rich branch model in the F-series lineup: same core NGFW + SD-WAN positioning, but with lots of hardware variants (PoE, DSL, 3G/4G/LTE, WiFi, storage, bypass), so its easy to match weird branch requirements without jumping up a size class.
Performance (Enterprise Traffic Mix)
-
IPS: up to 1.4 Gbps
-
NGFW: up to 1.0 Gbps
-
Threat Protection: up to 900 Mbps
-
SSL Inspection (IPS avg HTTPS): up to 715 Mbps
Core capacity & VPN (quick take)
-
Firewall throughput: 10 / 10 / 7 Gbps (1518 / 512 / 64-byte UDP)
-
Latency: 3.23 ¼s
-
Throughput: 10.5 Mpps
-
Concurrent sessions: 1.5M
-
New sessions/sec: 45,000
-
Policies: 5,000
-
IPsec VPN: 6.5 Gbps
-
Client-to-gateway IPsec tunnels: 2,500
-
SSL-VPN throughput: 950 Mbps
-
Concurrent SSL-VPN users (recommended): 200
-
CAPWAP: 9 Gbps
-
Max FortiAPs: 96 total / 48 tunnel
-
Max FortiSwitches: 24
-
VDOMs: 10 / 10
-
HA: Active-Active / Active-Passive / Clustering
View data sheet: FortiGate FortiWiFi 80F Series Data Sheet
