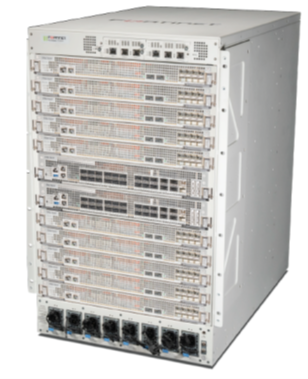

Fortinet FortiGate 7121F-DC
Roll over image to zoom in Click on image to zoom
Fortinet FortiGate 7121F-DC

Fortinet FortiGate 7121F-DC

Save $145,429.52
FortinetSKU: FG-7121F-DC
Price:
$679,104.48 $824,534.00

Description

FortiGate 7000F Series is Fortinet’s hyperscale, chassis-based next-generation firewall platform built for large data centers and hybrid environments. It forms the foundation of a Hybrid Mesh Firewall architecture—embedding security deep into the datacenter and extending consistent protection across the hybrid IT edge, at massive throughput and ultra-low latency.

Powered by FortiOS and Fortinet’s purpose-built SPU architecture (NP7 + CP9), the 7000F Series delivers accelerated firewalling, SSL inspection (including TLS 1.3), IPS, segmentation (VXLAN), and threat protection without turning security into a network bottleneck. Integrated ZTNA enforcement helps verify users and control access to applications, reducing lateral movement across the network.

Key benefits

  • Hyperscale NGFW performance for the datacenter core and high-throughput perimeter designs

  • SPU-accelerated security (NP7 network processor + CP9 content processor) for high speed and low latency

  • Integrated ZTNA enforcement inside the NGFW for validated user-to-app access control

  • Strong segmentation with ultra-scalable VXLAN and Layer 4 policies across physical + virtual domains

  • Enterprise FortiGuard AI-powered security services for ransomware, malware, zero-days, and advanced threats

  • Centralized operations with FortiManager (FortiAI-powered workflows) and simplified migration with FortiConverter Service

Model snapshot

  • FG-7081F: IPS 405 Gbps, NGFW 330 Gbps, Threat Protection 312 Gbps

  • FG-7121F: IPS 675 Gbps, NGFW 550 Gbps, Threat Protection 520 Gbps

  • Interface options include 25GE SFP28 / 10GE SFP+ / GE SFP, plus high-speed 100GE QSFP28 / 40GE QSFP+, and 400GE QSFP-DD

FG-7081F highlights (from the sheet)

  • IPv4/IPv6 firewall throughput (1518/512/64B UDP): 1.89 / 1.88 / 1.129 Tbps

  • Firewall latency (64B UDP): 7.5 μs

  • Firewall throughput: 1680 Mpps

  • Concurrent sessions (TCP): 600M | New sessions/sec: 5.4M

  • IPsec VPN throughput (512B): 378 Gbps (VPN load balancing noted)

  • SSL inspection throughput: 324 Gbps | Application control: 900 Gbps

  • NGFW: 330 Gbps | Threat protection: 312 Gbps

  • Form factor: 12U, 8-slot chassis (AC and DC variants available)

FG-7121F highlights (from the sheet)

  • IPv4/IPv6 firewall throughput (1518/512/64B UDP): 1.89 / 1.88 / 1.129 Tbps

  • Firewall latency (64B UDP): 7.5 μs

  • Firewall throughput: 1680 Mpps

  • Concurrent sessions (TCP): 1B | New sessions/sec: 9M

  • IPsec VPN throughput (512B): 630 Gbps

  • SSL inspection throughput: 540 Gbps | Application control: 1.5 Tbps

  • IPS: 675 Gbps | NGFW: 550 Gbps | Threat protection: 520 Gbps

  • Form factor: 16U, 12-slot chassis (AC and DC variants available)

Common use cases

  • Datacenter NGFW with high-performance SSL inspection and full application visibility

  • Micro/macro segmentation at scale (VXLAN + Layer 4 controls) to prevent lateral movement

  • Secure SD-WAN and hybrid WAN edge at enterprise scale with unified security + management

  • Mobile/Carrier security for 4G/5G/IoT including CGNAT/IPv6 migration and GTP-U visibility




View data sheet: FortiGate 7000F Series Data Sheet
