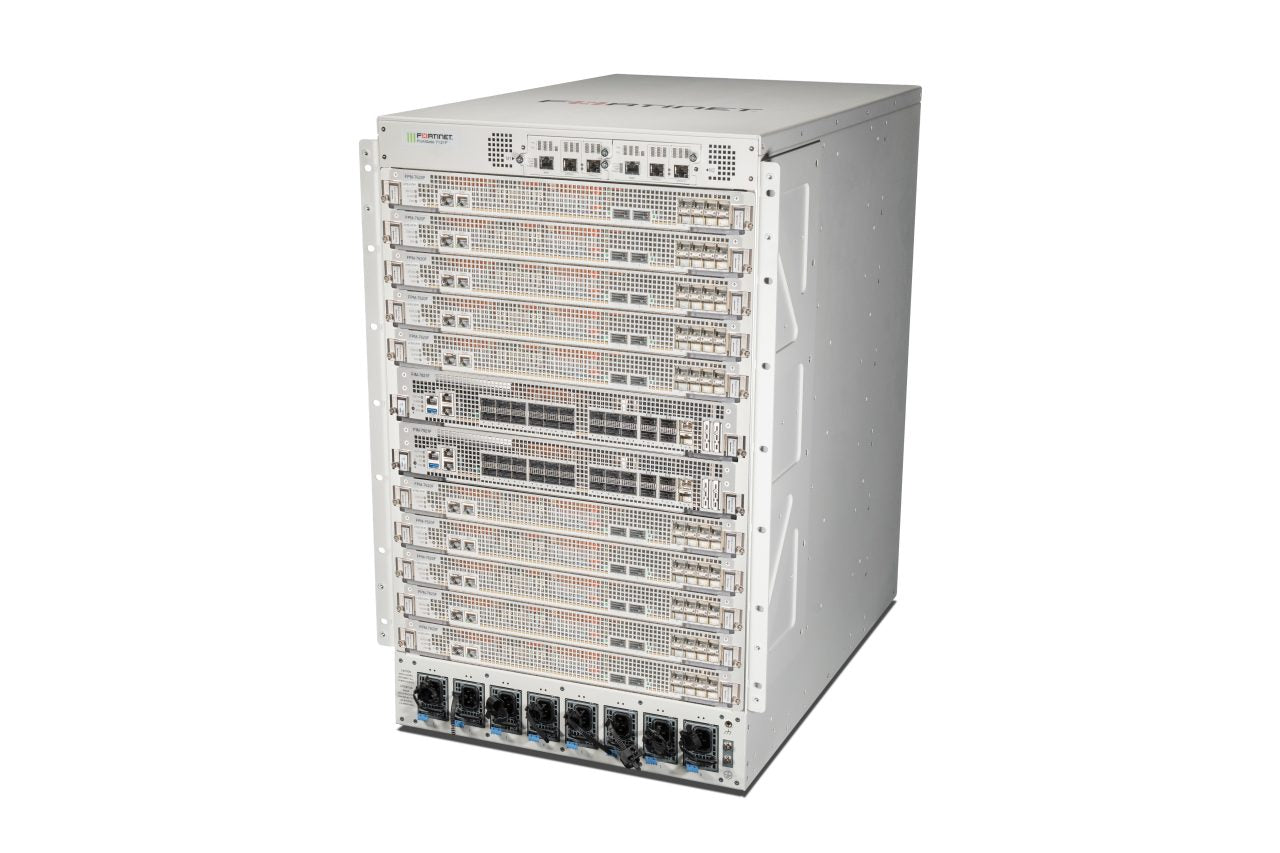

Fortinet FortiGate 7121F-2-DC
Roll over image to zoom in Click on image to zoom
Fortinet FortiGate 7121F-2-DC

Fortinet FortiGate 7121F-2-DC

Save $145,429.52
FortinetSKU: FG-7121F-2-DC
Price:
$679,104.48 $824,534.00

Description

Fortinet FortiGate 7000F Series (FG-7081F / FG-7121F + chassis ecosystem)

Overview

The FortiGate 7000F Series is a hyperscale, chassis-based NGFW platform built for high-density data centre and carrier-grade environments. It’s designed to be the backbone of Hybrid Mesh Firewall architecture—embedding security across data centre + hybrid IT—powered by FortiOS and FortiGuard AI/ML services, with integrated ZTNA enforcement inside the NGFW for validated, least-privilege application access.

Headline Model Specs (Enterprise Traffic Mix)

These are the numbers most people shop on first:

FG-7081F

  • IPS: 405 Gbps

  • NGFW: 330 Gbps

  • Threat Protection: 312 Gbps

FG-7121F

  • IPS: 675 Gbps

  • NGFW: 550 Gbps

  • Threat Protection: 520 Gbps

Interfaces & Connectivity (what it’s built for)

The platform spans mixed-speed high-density ports across 25G / 100G / 400G:

  • 25GE SFP28 / 10GE SFP+ / GE SFP

  • 100GE QSFP28 / 40GE QSFP+

  • 400GE QSFP-DD

FG-7081F interface totals (as listed)

  • 16 × 400GE QSFP-DD / 100GE QSFP28 / 40GE QSFP+

  • 36 × 100GE QSFP28 / 40GE QSFP+

  • 48 × 100GE QSFP28 / 40GE QSFP+ (additional line item shown in the sheet)

  • 80 × 25GE SFP28 / 10GE SFP+

  • 4 × Management/HA slots + 4 × SFP Management/HA slots

  • 2 × USB, 8 × Console

  • Storage: 4 × 4TB SSD

  • Included transceivers: 4 × 10GE SFP+ SR

FG-7121F interface totals (as listed)

  • 24 × 400GE QSFP-DD / 100GE QSFP28 / 40GE QSFP+

  • 36 × 100GE QSFP28 / 40GE QSFP+

  • 80 × 25GE SFP28 / 10GE SFP+

  • 4 × GE RJ45 management ports

  • 4 × SFP Management/HA slots

  • 2 × USB, 14 × Console

  • Storage: 4 × 4TB SSD

  • Included transceivers: 4 × 10GE SFP+ SR

Core Performance & Capacity (selected)

FG-7081F platform capacity

  • IPv4 firewall throughput (UDP): 1.89 / 1.88 / 1.129 Tbps (1518/512/64B)

  • IPv6 firewall throughput (UDP): 1.89 / 1.88 / 1.129 Tbps (1518/512/86B)

  • Firewall latency (64B UDP): 7.5 μs

  • Firewall PPS: 1680 Mpps

  • Concurrent sessions (TCP): 600 million

  • New sessions/sec (TCP): 5.4 million

  • Firewall policies: 200,000

  • IPsec VPN throughput (512B): 378 Gbps

  • IPsec tunnels (G2G): 40,000

  • IPsec tunnels (client): 260,000

  • SSL-VPN throughput: 13.5 Gbps

  • Recommended concurrent SSL-VPN users: 30,000

  • SSL inspection throughput: 324 Gbps

  • SSL inspection CPS: 288,000

  • SSL inspection concurrent sessions: 60 million

  • Application control (HTTP 64K): 900 Gbps

  • Max FortiSwitch supported: 300

  • Max FortiTokens: 12,000

  • HA: Active-Active (FGSP), Active-Passive, Clustering

FG-7121F platform capacity

  • IPv4 firewall throughput (UDP): 1.89 / 1.88 / 1.129 Tbps

  • IPv6 firewall throughput (UDP): 1.89 / 1.88 / 1.129 Tbps

  • Firewall latency (64B UDP): 7.5 μs

  • Firewall PPS: 1680 Mpps

  • Concurrent sessions (TCP): 1 billion

  • New sessions/sec (TCP): 9 million

  • Firewall policies: 200,000

  • IPsec VPN throughput (512B): 630 Gbps

  • IPsec tunnels (G2G): 40,000

  • IPsec tunnels (client): 260,000

  • SSL-VPN throughput: 13.7 Gbps

  • Recommended concurrent SSL-VPN users: 30,000

  • SSL inspection throughput: 540 Gbps

  • SSL inspection CPS: 480,000

  • SSL inspection concurrent sessions: 100 million

  • Application control (HTTP 64K): 1.5 Tbps

  • Max FortiSwitch supported: 300

  • Max FortiTokens: 20,000

  • HA: Active-Active (FGSP), Active-Passive, Clustering

Chassis architecture (what matters for positioning)

FG-7081F chassis

  • 12U, 8-slot chassis

  • Starts with 1 × FPM-7620F (processor module) + 1 × FIM I/O module (7921F or 7941F depending on -2 model)

  • Includes 2 × management modules

  • 6 × hot-swappable redundant PSU (2500W AC/DC depending on SKU)

FG-7121F chassis

  • 16U, 12-slot chassis

  • Default config lists 2 × FPM-7620F + 2 × FIM (7921F or 7941F depending on model)

  • Includes 2 × management modules

  • 8 × hot-swappable redundant PSU

  • Notes mention: 10 slots for FPM and 2 slots for FIM (default: 2×FPM + 2×FIM)

Modules you can quote/replace (ecosystem pieces)

FPM-7620F (Processor Module)

  • NP7 + CP9 accelerated module (hot-swappable)

  • Listed performance (per module-style entry):

    • IPS (Enterprise Mix): 150 Gbps

    • NGFW: 55 Gbps

    • Threat Protection: 52 Gbps

    • Firewall throughput (UDP): 396 / 395 / 263 Gbps

    • IPsec (512B): 63 Gbps

    • SSL-VPN: 13.7 Gbps

    • SSL inspection: 54 Gbps

    • SSL CPS: 48,000

    • SSL concurrent: 10 million

    • App control: 67.5 Gbps

FIM-7921F / FIM-7941F (Interface Modules)

  • High-density I/O + local log storage

  • 21 × 400GE QSFP-DD / 100GE QSFP28 / 40GE QSFP+

  • 182/183 × 100GE QSFP28 / 40GE QSFP+ (7921F vs 7941F)

  • 2 × 25GE/10GE SFP management/HA

  • 2 × GE RJ45 management

  • 2 × 4TB SSD (8TB total per module)

  • Packed individually and includes 2 × 10GE SFP+ SR at no charge

Power & Physical (ops reality check)

FG-7081F

  • Size: 21.41 × 17.33 × 26.6 in (543.9 × 440 × 675.5 mm)

  • Weight: 165.68 kg / 365.26 lbs

  • Power: 6100W avg / 7300W max (AC model)
    6160W avg / 7370W max (2 / alternate listing)

  • AC input: 200–277VAC, 16A × 6

  • DC: -48V to -60V, up to ~152–154A @48V

  • Heat: ~24,900–25,174 BTU/h

  • Operating temp: 0–40°C

FG-7121F

  • Form factor: 16RU

  • Size: 28.63 × 17.33 × 26.6 in (727.2 × 440 × 675.5 mm)

  • Weight: 203.1 kg / 447.36 lbs

  • Power: around 8296W avg / 9754W max (AC)
    DC variants show similar totals

  • AC current: 8 × 10A

  • Heat (max): 33,261 BTU/h

  • Operating temp: 0–40°C



View data sheet: FortiGate 7000F Series Data Sheet
