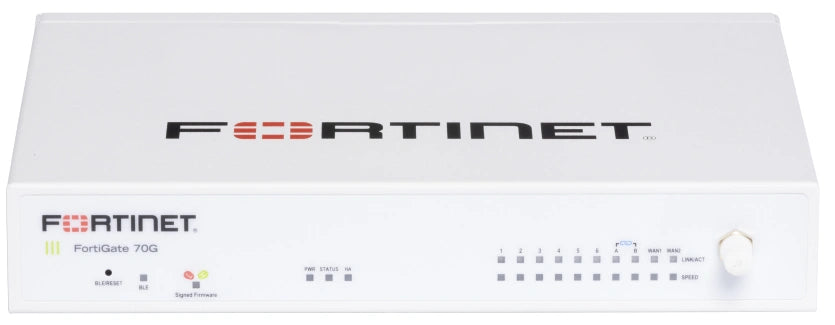

Fortinet FortiGate 70G PoE

Fortinet FortiGate 70G PoE

High-performance NGFW + SD-WAN with integrated PoE for secure branch deployments

The FortiGate 70G PoE is a powerful next-generation firewall purpose-built for branch offices and distributed enterprises that need stronger performance, integrated SD-WAN, and direct PoE connectivity for access layer devices.

Powered by FortiOS and Fortinets patented SP5 Secure SD-WAN ASIC, the 70G PoE delivers enterprise-grade threat protection, deep SSL inspection, and high VPN throughputwhile also supplying Power over Ethernet (PoE+) to devices such as access points, IP phones, and cameras. This reduces the need for additional PoE switches in smaller environments.

As part of the Fortinet Security Fabric, it works seamlessly with FortiGuard AI-Powered Security Services to provide real-time, coordinated protection across IT, OT, and IoT environments.

---

Why Choose the 70G PoE?

• 4x PoE+ ports (802.3at, up to 30W per port)

• 60W total PoE power budget

• 2x GE WAN ports for ISP redundancy

• SP5 ASIC acceleration for fast application steering and deep inspection

• TPM + Signed Firmware hardware switch for physical device hardening

• Integrated SD-WAN at no additional license cost

Perfect for organisations that want to power edge devices directly from the firewall while maintaining strong security enforcement.

---

Security & Performance

Enterprise Traffic Mix Performance

• IPS: Up to 2.5 Gbps

• NGFW: Up to 1.5 Gbps

• Threat Protection: Up to 1.3 Gbps

• SSL Inspection: Up to 1.4 Gbps

• IPsec VPN: Up to 7.1 Gbps

Firewall Performance

• 10 Gbps Firewall throughput

• 15 Mpps packet processing

• 1.4 million concurrent sessions

• 100,000 new sessions per second

This makes the 70G PoE a step up from the 50G seriesideal for mid-size branches or growing businesses needing higher capacity.

---

Ideal Use Cases

Secure Branch with Powered Access Layer

Power FortiAPs, VoIP phones, and cameras directly from the firewallideal for:

• Retail stores

• Healthcare clinics

• Schools

• Professional services offices

Perimeter Protection

• Full SSL/TLS 1.3 inspection

• AI-driven IPS and malware detection

• URL, DNS, and application control

Secure SD-WAN

• Multi-WAN load balancing and failover

• Application-aware routing

• Hybrid workforce and SASE-ready deployments

Port Overview (FG-70G-POE)

• 2x GE RJ45 WAN

• 2x GE RJ45 FortiLink

• 4x GE RJ45 PoE+ ports

• 1x Console

• 1x USB

• Signed Firmware Hardware Switch

• TPM Security Module

Power & Form Factor

• Desktop / Wall mountable

• Fanless design

• 60W PoE budget

• 70WÅ“79W max consumption (PoE model)

Compact, quiet, and purpose-built for branch environments.

View data sheet: FortiGate FortiWiFi 70G Series Data Sheet
