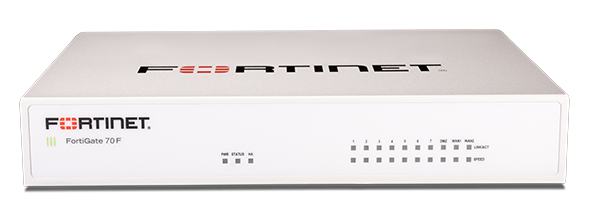

Fortinet FortiGate 70F Series (FG-70F, FG-71F)
Branch / mid-market NGFW + SD-WAN that sits nicely between the 60F and the newer 70G family. Same all-in-one positioning: firewall, SD-WAN, plus FortiGuard AI-Powered Security Services on FortiOS.
Performance (Enterprise Traffic Mix)
-
IPS: up to 1.4 Gbps
-
NGFW: up to 1.0 Gbps
-
Threat Protection: up to 800 Mbps
-
SSL Inspection (IPS avg HTTPS): up to 700 Mbps
Hardware snapshot (ports & interfaces)
Ports (70F / 71F chassis)
-
2x GE RJ45 WAN
-
1x GE RJ45 DMZ
-
2x GE RJ45 FortiLink (default FortiLink; can be repurposed)
-
5x GE RJ45 internal LAN
-
1x USB, 1x Console (RJ45)
-
Total: 10x GE RJ45 ports (2 WAN + 1 DMZ + 7 internal)
Storage variants (key difference)
-
FG-70F: no internal SSD
-
FG-71F: 128GB SSD onboard storage
Capacity & VPN (quick take)
-
Firewall throughput: 10 / 10 / 6 Gbps (1518 / 512 / 64-byte UDP)
-
Latency: 2.54 ¼s
-
Throughput: 9 Mpps
-
Concurrent sessions: 1.5M
-
New sessions/sec: 35,000
-
IPsec VPN throughput: 6.1 Gbps
-
SSL-VPN throughput: 405 Mbps
-
Concurrent SSL-VPN users (recommended): 200
Branch ecosystem scaling
-
Max FortiSwitches: 24
-
Max FortiAPs: 64 total / 32 tunnel
-
Virtual domains (VDOMs): 10 / 10
-
HA: Active-Active, Active-Passive, Clustering
Form factor & power
-
Desktop, fanless (0 dBA), wall-mountable
-
Dimensions: 1.5 x 8.5 x 6.3 in (38.5 x 216 x 160 mm)
-
Power:
-
70F: 10.17W avg / 12.43W max
-
71F: 17.2W avg / 18.7W max
-
View data sheet: FortiGate 70F Series Datasheet
