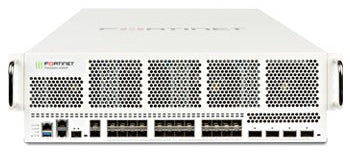

Fortinet FortiGate 6000F Series (FG-6001F / FG-6300F/6301F / FG-6500F/6501F + DC variants)
Overview
The FortiGate 6000F Series is a high-performance, data-centre-class next-generation firewall platform designed to build security-driven networks at scale. Its positioned as a foundation for Hybrid Mesh Firewall architectureembedding security across the data centre and hybrid ITpowered by FortiOS plus AI/ML-driven FortiGuard Services for coordinated, end-to-end threat protection. It also includes integrated ZTNA enforcement within the NGFW to verify users and tightly control application access, reducing lateral movement.
Model Lineup at a Glance (Enterprise Traffic Mix)
These are the headline IPS / NGFW / Threat Protection numbers youll want in your hero spec row:
FortiGate 6001F (chassis-style / blade-enabled)
-
IPS: 51 / 17 / 170 Gbps (Default / per FPC / Max)
-
NGFW: 45 / 15 / 150 Gbps (Default / per FPC / Max)
-
Threat Protection: 30 / 10 / 100 Gbps (Default / per FPC / Max)
Important: FG-6001F ships with 10x FPC blades installed, but licensing enables 3x FPC by default. You can add a perpetual or subscription license to enable more FPCs (up to 7).
FortiGate 6300F / 6301F (+ DC options)
-
IPS: 110 Gbps
-
NGFW: 90 Gbps
-
Threat Protection: 60 Gbps
FortiGate 6500F / 6501F (+ DC options)
-
IPS: 170 Gbps
-
NGFW: 150 Gbps
-
Threat Protection: 100 Gbps
Interfaces & Connectivity
All models in the 6000F family share the same core interface layout:
-
4 x 40/100GE QSFP+/QSFP28 slots
-
24 x 1/10/25GE SFP/SFP+/SFP28 slots
-
3 x 10GE SFP+ ports (Management + HA layout)
-
2 x GE RJ45 management ports
-
USB + Console
This series is a strong fit for 25G leaf/uplink designs with 100G aggregation, while still keeping flexible 10G/1G options.
Hardware Platform (what makes it 6000F)
-
NP6 + CP9 acceleration (Fortinet SPU + Content Processor)
-
DP3 listed in hardware features
-
Form factor: 3RU
-
Storage: 2 x 960GB NVMe (listed across models)
Key Capacity & Performance Specs (selected)
Shared or comparable values (varies mainly by model / FPC scaling):
Latency & packet performance
-
Firewall latency (64 byte UDP): 4.80 ¼s
-
Firewall throughput (pps):
-
6001F: 60.75 / 20.25 / 202.5 Mpps (Default / per FPC / Max)
-
6300F/6500F: 202.5 Mpps
-
Sessions
-
Concurrent sessions (TCP):
-
6001F: 60 / 20 / 200 Million (Default / per FPC / Max)
-
6300F: 120 Million
-
6500F: 200 Million
-
-
New sessions/sec (TCP):
-
6001F: 900k / 300k / 3M (Default / per FPC / Max)
-
6300F: 2M
-
6500F: 3M
-
-
Firewall policies: 200,000
VPN
-
IPsec VPN throughput (512 byte):
-
6001F: 48 / 16 / 160 Gbps (Default / per FPC / Max)
-
6300F: 96 Gbps
-
6500F: 160 Gbps
-
-
Gateway-to-gateway IPsec tunnels: 16,000
-
Client-to-gateway IPsec tunnels: 90,000
-
SSL-VPN throughput: 9 Gbps
-
Recommended concurrent SSL-VPN users (tunnel mode): 30,000
SSL inspection (IPS, avg HTTPS)
-
6001F: 33 / 11 / 110 Gbps (Default / per FPC / Max)
-
6300F: 66 Gbps
-
6500F: 110 Gbps
-
SSL inspection CPS:
-
6001F: 15,000 / 5,000 / 50,000
-
6300F: 30,000
-
6500F: 50,000
-
-
SSL inspection concurrent sessions:
-
6001F: 5.4 / 1.8 / 18 Million
-
6300F: 10 Million
-
6500F: 18 Million
-
App control
-
Application Control throughput (HTTP 64K):
-
6001F: 66 / 22 / 220 Gbps
-
6300F: 150 Gbps
-
6500F: 220 Gbps
-
Physical & Power (quick ops view)
-
Rack mount: 3RU
-
Noise: 57.43 dBA
-
Airflow: front-to-back
-
Operating altitude: up to 10,000 ft (3048 m)
-
Operating temp: 0°C to 40°C
Power draw (Average / Max)
-
6001F: 1308W / 1548W (also shows a second line: 1328W / 1568W)
-
6300F/6301F: 977W / 1217W (and 977W / 1237W)
-
6500F/6501F: 1308W / 1548W (and 1328W / 1568W)
DC models:
-
-48 to -60V DC (for the -DC variants), with 25Å“32A (x2) listed.
View data sheet: FortiGate 6000F Series Datasheet
