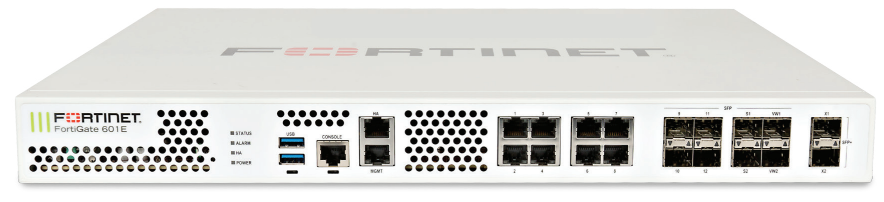

Fortinet FortiGate 600E Series (FG-600E / FG-601E)
10G-class NGFW with 1RU density, built on NP6 + CP9.
This is a strong fit when a customer needs high NGFW + SSL inspection but doesnt need 25G uplinks (thats where the 600F wins).
At-a-glance performance (Enterprise Traffic Mix)
-
IPS: 10 Gbps
-
NGFW: 9.5 Gbps
-
Threat Protection: 7 Gbps
-
SSL Inspection (IPS avg HTTPS): 8 Gbps
-
IPsec VPN (512B): 20 Gbps
-
SSL-VPN: 7 Gbps
-
Recommended concurrent SSL-VPN users: 10,000
Plain English: Great for large branch / campus edge where youll run real security stacks + SSL decrypt, and still have headroom.
Ports & interfaces (what you actually get)
-
2 x 10GE SFP+
-
8 x GE SFP
-
8 x GE RJ45
-
2 x GE RJ45 MGMT/HA
-
2 x USB + RJ45 console
-
Included transceivers: 2 x 1GE SX SFP
Key selling point: clean 10G uplink capability (2x SFP+) plus a practical mix of RJ45 + SFP for access/aggregation.
Capacity & scale highlights
-
IPv4 firewall throughput (1518/512/64 UDP): 36 / 36 / 27 Gbps
-
Firewall latency (64B UDP): 1.54 ¼s
-
Firewall throughput: 40.5 Mpps
-
Concurrent sessions: 8 million
-
New sessions/sec: 450,000
-
Firewall policies: 10,000
-
VDOMs: 10 default / 50 max
-
Max FortiSwitches: 96
-
Max FortiAPs: 1024 total / 512 tunnel
-
Client-to-gateway IPsec tunnels: 50,000
-
Client-to-gateway IPsec tunnels: 50,000
Hardware notes
-
SPU acceleration: NP6 + CP9
-
1RU
-
Redundant PSU: Optional (ships with one hot-swappable PSU; second is add-on)
Model differences (SKU choice)
-
FG-600E: no onboard storage
-
FG-601E: 2 x 240GB SSD onboard storage
