Description

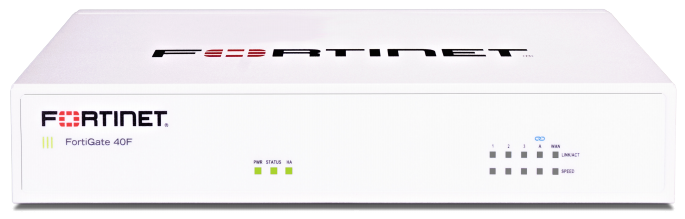

Fortinet FortiGate / FortiWiFi 40F Series (FG-40F, FWF-40F)
Entry-level NGFW + SD-WAN built for small offices and remote sites the FortiGate 40F series combines firewalling, SD-WAN, and FortiGuard AI-Powered Security Services in a compact, fanless appliance. Its ideal when you need business-grade security and simple branch connectivity without stepping up to heavier branch models.
Performance (Enterprise Traffic Mix)
-
IPS: up to 1.0 Gbps
-
NGFW: up to 800 Mbps
-
Threat Protection: up to 600 Mbps
Core hardware (FG-40F / FWF-40F / FG-40F-3G4G)
-
Ports: 1x GE WAN, 1x GE FortiLink, 3x GE LAN (5x GE RJ45 total)
-
Wi-Fi model (FWF-40F): single radio 2.4/5 GHz (802.11 a/b/g/n/ac)
-
LTE model (FG-40F-3G4G): embedded CAT-12 LTE, 2x Nano SIM, 3x SMA antennas
-
Fanless, desktop form factor (wall mount possible with kit)
VPN, sessions, and capacity (quick take)
-
IPsec VPN throughput: up to 4.4 Gbps
-
SSL-VPN throughput: up to 490 Mbps, 200 recommended users (tunnel mode)
Note: SSL-VPN is not supported on FortiOS 7.6.0 and above (per your datasheet).
Best fit use cases
Small business perimeter / UTM
-
Web filtering + IPS + malware protection
-
App control and visibility for policy enforcement
Secure SD-WAN
-
Multi-site connectivity with app-aware routing
-
Great for a few WAN links and basic branch rollout
Secure Branch (lightweight)
-
FortiLink for simple FortiSwitch/FortiAP integration
-
Good when you dont need PoE or high port density
view data sheet: FortiGate FortiWiFi 40F Series Data Sheet
