Description
Fortinet FortiGate 400F Series (FG-400F / FG-401F / -DC)
High-performance 1RU NGFW + Secure SD-WAN + ZTNA + segmentation, designed for larger branches / campus edge / data-centre edge where you want serious inspection throughput plus a lot of 10G.
At-a-glance performance (Enterprise Traffic Mix)
-
IPS: 12 Gbps
-
NGFW: 10 Gbps
-
Threat Protection: 9 Gbps
-
SSL Inspection (IPS avg HTTPS): 8 Gbps
-
IPsec VPN (512B): 55 Gbps
-
SSL-VPN: 3.6 Gbps
-
Recommended concurrent SSL-VPN users: 5,000
Plain English: this is a big jump up from 200F/100F when customers say we need deep inspection on 10G links without the firewall becoming the bottleneck.

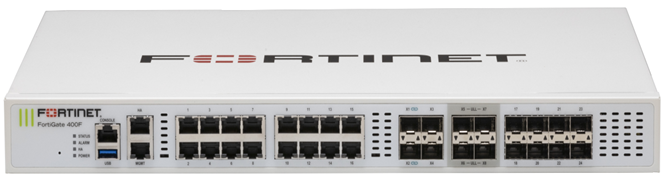

Ports & interfaces (what you can sell on)
From the spec you pasted:
-
16 x GE RJ45 (hardware accelerated)
-
2 x GE RJ45 MGMT/HA ports (plus console/USB)
-
8 x 1GE SFP
-
8 x 10GE SFP+ total, split as:
-
4 x 1GE/10GE SFP+
-
4 x 10GE SFP+ Ultra-Low-Latency (ULL) ports
-
This is ideal for:
-
multiple 10G uplinks (core, DC, WAN handoffs)
-
fibre-heavy environments
-
FortiSwitch integration (FortiLink supported on capable ports per deployment)
Capacity & scale highlights
-
IPv4/IPv6 firewall throughput (1518/512/64 UDP): 79.5 / 78.5 / 70 Gbps
-
Firewall latency (64B UDP): 4.19 ¼s (or 2.5 ¼s on ULL ports)
-
Firewall throughput: 105 Mpps
-
Concurrent sessions: 7.8 million
-
New sessions/sec: 500,000
-
Firewall policies: 10,000
-
VDOMs: 10 default / 25 max
-
Max FortiSwitches: 96 (note: requires FortiOS 7.6.1+ for 96; earlier releases up to 72)
-
Max FortiAPs: 512 total / 256 tunnel
Hardware notes
-
SPU acceleration: NP7 + CP9
-
TPM included
-
Dual PSU are hot-swappable
-
AC and DC variants available
Model differences (SKU choice)
-
FG-400F: no onboard storage
-
FG-401F: 2 x 480GB SSD (listed as 960GB onboard)
-
FG-400F-DC / FG-401F-DC: DC power versions (for DC/plant/industrial racks that standardise on DC)
View data sheet: FortiGate 400F Series Data Sheet
