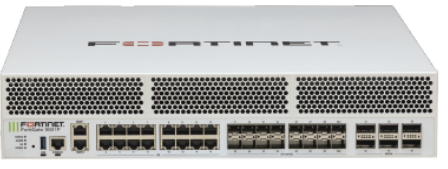

Fortinet FortiGate 3001F-DC
Roll over image to zoom in Click on image to zoom
Fortinet FortiGate 3001F-DC

Fortinet FortiGate 3001F-DC

Save $31,564.46
FortinetSKU: FG-3001F-DC
Price:
$147,392.54 $178,957.00

Description

Fortinet FortiGate 3000F Series

Overview

The FortiGate 3000F Series is a high-performance next-generation firewall built for enterprise data centres, internet edges, and high-scale core networks. Designed to support security-driven networking, it delivers advanced threat protection, deep SSL inspection, and ultra-high throughput while enabling seamless segmentation across hybrid IT environments. Powered by Fortinet’s NP7 network processor and CP9 content processor, the 3000F Series provides hyperscale performance without sacrificing security visibility.

Enterprise Traffic Mix Performance

  • IPS Throughput: 36 Gbps

  • NGFW Throughput: 34 Gbps

  • Threat Protection Throughput: 33 Gbps

  • SSL Inspection Throughput (IPS avg HTTPS): 29 Gbps

  • SSL Inspection CPS: 29,000

  • IPsec VPN Throughput: 105 Gbps

  • SSL-VPN Throughput: 11 Gbps

  • Recommended Concurrent SSL-VPN Users: 30,000

The 3000F maintains high throughput even with IPS, Application Control, and Malware Protection enabled, making it ideal for “everything-on” security deployments.

Interfaces & Connectivity

Built for modern high-speed architectures:

  • 6 × 100GE QSFP28 (40GE compatible)

  • 16 × 25GE SFP28 (includes 2 HA ports; supports 10GE SFP+ / GE SFP)

  • 16 × Multi-Gig RJ45 (10GE / 5GE / 2.5GE / GE)

  • 2 × 10GE / GE RJ45 Management Ports

  • USB & Console Ports

This flexible interface mix enables 100G core uplinks, 25G distribution, and multi-gig access without additional aggregation hardware.

System Performance & Scalability

  • Firewall Throughput (IPv4 1518 / 512 / 64 byte): 397 / 389 / 221 Gbps

  • Firewall Latency (64 byte UDP): 3.92 μs

  • Firewall Throughput: 331.5 Mpps

  • Concurrent Sessions: 70 Million (up to 230 Million with Hyperscale License)

  • New Sessions per Second: 870,000 (up to 3 Million with Hyperscale License)

  • Firewall Policies: 200,000

  • SSL Inspection Concurrent Sessions: 7.5 Million

  • Virtual Domains (VDOMs): 10 Default / 500 Maximum

Designed for high-connection environments, the 3000F supports large-scale enterprises, service providers, and high-session-rate deployments.

Security Capabilities

  • Integrated Zero Trust Network Access (ZTNA) enforcement

  • AI/ML-powered FortiGuard Security Services

  • Real-time SSL/TLS 1.3 inspection

  • Advanced IPS with over 18,000 signatures

  • Inline malware prevention and sandbox integration

  • DLP, CASB, DNS and URL filtering

  • OT security with virtual patching and protocol inspection

  • Hardware-assisted anti-DDoS

All security functions are unified under FortiOS for consistent policy enforcement across physical, virtual, and cloud environments.

VPN & Remote Access

  • IPsec VPN Tunnels (Gateway-to-Gateway): 40,000

  • IPsec VPN Tunnels (Client-to-Gateway): 200,000

  • SSL-VPN Recommended Users: 30,000

  • High-performance VPN aggregation with hardware acceleration

The 3000F is well suited for large remote workforces and high-throughhead encrypted site-to-site connectivity.

Hyperscale Firewall License

The optional Hyperscale Firewall License unlocks enhanced session scalability and hardware acceleration for CGNAT features using the NP7 processor. This enables higher session setup rates, accelerated NAT, and expanded connection capacity for large-scale environments.

Hardware & Platform Features

  • Processors: NP7 Network Processor + CP9 Content Processor

  • Trusted Platform Module (TPM) for hardware-based key protection

  • Form Factor: 2RU Rack Mount

  • Redundant Hot-Swappable Power Supplies (AC or DC)

  • Optional 2 × 960GB SSD Storage (3001F models)

  • Front-to-back airflow

  • 80Plus power efficiency compliant

Model Variants

  • FG-3000F – Dual AC power, no onboard SSD

  • FG-3000F-DC – Dual DC power, no onboard SSD

  • FG-3001F – Dual AC power with 2 × 960GB SSD

  • FG-3001F-DC – Dual DC power with 2 × 960GB SSD

Ideal Use Cases

  • Data centre core and internet edge security

  • High-speed segmentation with 100G uplinks

  • Large enterprise campuses

  • High-scale VPN aggregation

  • Hyperscale session environments

  • Secure SD-WAN and hybrid cloud deployments

The FortiGate 3000F Series delivers ultra-high performance, deep inspection, and hyperscale capacity in a single integrated security platform, making it an ideal choice for organisations requiring maximum throughput, scalability, and advanced threat protection.



View data sheet: FortiGate 3000F Series Datasheet
