Description

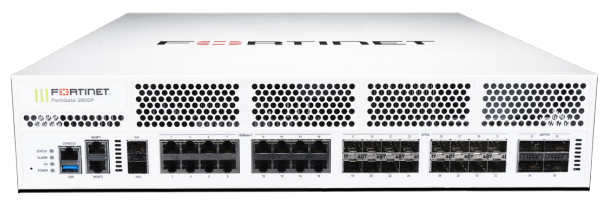

Fortinet FortiGate 2600F Series (FG-2600F / FG-2601F)
Modern data-centre / core NGFW built for 25G + 100G uplinks, with very high everything-on security throughput.
Compared to the E-series you pasted earlier (2200E/2500E), this is a big step up because it pairs NP7 + CP9 with 25G SFP28 and 100G QSFP28so it actually fits modern leaf/spine and high-speed core designs.
At-a-glance performance (Enterprise Traffic Mix)
-
IPS: 31 Gbps
-
NGFW: 27 Gbps
-
Threat Protection: 25 Gbps
-
SSL Inspection (IPS avg HTTPS): 20 Gbps
-
SSL Inspection CPS: 16,000
-
IPsec VPN (512B): 55 Gbps
-
SSL-VPN throughput: 16 Gbps
-
Recommended concurrent SSL-VPN users: 30,000
What that means: this is built for high sustained inspection (IPS/NGFW/Threat Protection) while still supporting serious remote access + encrypted traffic visibility.
Ports & interfaces (why people buy it)
Base connectivity mix is very DC-core ready:
-
16 x 10GE/1GE RJ45 (hardware accelerated)
-
16 x 25GE SFP28 (also supports 10GE SFP+ / 1GE SFP)
-
4 x 100GE QSFP28 (also supports 40GE QSFP+)
-
2 x 10GE SFP+ / 1GE SFP HA slots
-
2 x 1GE RJ45 MGMT
-
Console + USB 3.0
-
2RU, hot-swappable redundant PSUs
Storage / model difference
-
FG-2600F: no onboard storage
-
FG-2601F: 2 x 960GB NVMe SSD onboard (useful if you want more local logging / storage options)
Platform security
-
Includes TPM (hardware root-of-trust style capability for protecting keys / integrity at the appliance level).
Scale & capacity (enterprise)
-
IPv4 FW throughput (1518/512/64 UDP): 198 / 196 / 140 Gbps
-
Latency (64B UDP): 3.41 ¼s
-
Firewall throughput: 210 Mpps
-
Concurrent sessions: 24M / 40M*
-
New sessions/sec: 1M / 2M*
* the higher figures require the Hyperscale Firewall License.
Also supports:
-
VDOMs: 10 default / 500 max
-
FortiAP: 4096 total / 2048 tunnel
-
FortiSwitch: 196
-
FortiTokens: 20,000
-
Registered FortiClients: 20,000
View data sheet: FortiGate 2600F Series Data Sheet
