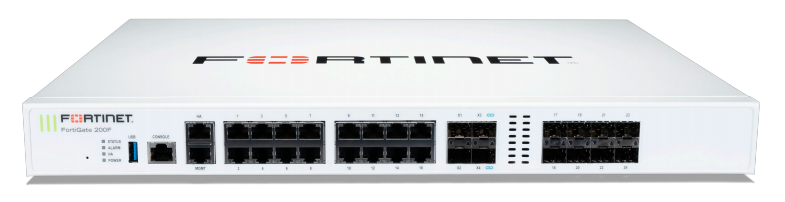

Fortinet FortiGate 200F Series (FG-200F / FG-201F)
Mid-range branch / campus edge NGFW + Secure SD-WAN + segmentation in 1RU, with lots of ports and strong inspection.
The FortiGate 200F Series is a great step up from the 100F when you need more throughput, more sessions/sec, and more “real-world” inspection headroom for IPS/NGFW/Threat Protection.
At-a-glance performance (Enterprise Traffic Mix)
-
IPS: 5 Gbps
-
NGFW: 3.5 Gbps
-
Threat Protection: 3 Gbps
-
SSL Inspection (IPS avg HTTPS): 4 Gbps
-
IPsec VPN (512B): 13 Gbps
-
SSL-VPN: 2 Gbps
Plain English: solid for branch/head-office edge with heavy inspection turned on, plus good VPN and SSL inspection capacity for a 1RU.
Ports & interfaces (what customers care about)
200F / 201F physical I/O summary (from your spec + diagram):
-
16 × GE RJ45
-
1 × GE RJ45 MGMT + 1 × GE RJ45 HA (listed separately in the table)
-
8 × GE SFP
-
2 × 10GE SFP+ FortiLink (default)
-
2 × 10GE SFP+ (non-FortiLink)
➡️ Total 4 × 10GE SFP+ ports on the box (2 FortiLink + 2 general).
This layout is great for:
-
copper-heavy sites (users, printers, edge devices)
-
fibre uplinks (GE SFP)
-
10G uplinks to core / switches + FortiSwitch integration via FortiLink
Model differences (SKU choice)
-
FG-200F: no onboard storage
-
FG-201F: 1 × 480GB SSD (useful if you want more local logging / retention / reporting workflows)
Core capacity & scale
-
Firewall throughput (1518/512/64 UDP): 27 / 27 / 11 Gbps
-
Concurrent sessions: 3 million
-
New sessions/sec: 280,000
-
Firewall policies: 10,000
-
VDOMs: 10 / 10
-
FortiSwitch support: 64
-
FortiAP support: 256 total / 128 tunnel
-
Recommended SSL-VPN users: 500
Hardware notes (good “value lines”)
-
NP6XLite + CP9 acceleration (Fortinet SPU design for performance under security inspection)
-
TPM + BLE supported
-
Dual AC PSU, non-hot swappable (redundant, but not “swap live”)
