Description

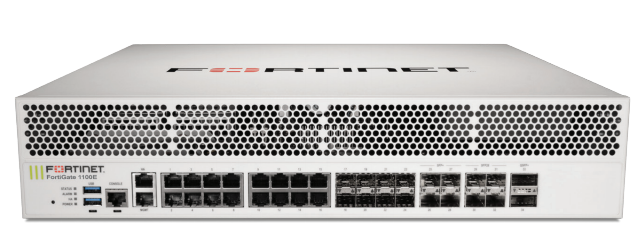

Fortinet FortiGate 1100E Series (FG-1100E / FG-1101E / FG-1100E-DC)
“Core / DC edge NGFW with 40G + 25G uplinks, big policy scale, and strong SSL inspection—at a lower tier than 1000F.”
This is a great fit when you need high-speed segmentation at the core (40G/25G), but don’t need 100G QSFP28 like the 1000F.
At-a-glance performance (Enterprise Traffic Mix)
-
IPS: 12.5 Gbps
-
NGFW: 9.8 Gbps
-
Threat Protection: 7.11 Gbps
-
SSL Inspection (IPS avg HTTPS): 10 Gbps
-
IPsec VPN (512B): 48 Gbps
-
SSL-VPN: 8.4 Gbps
-
Recommended concurrent SSL-VPN users: 10,000
What that means: strong “real-world security stack” performance (IPS/NGFW/Threat), and excellent SSL inspection for the class.
Ports & interfaces (what you’re really buying)

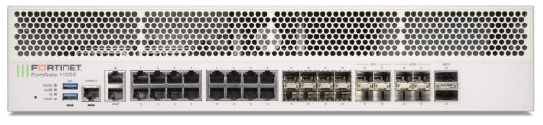

Front-panel connectivity:
-
2 × 40GE QSFP+
-
4 × 25GE SFP28 (also supports 10GE SFP+ / GE SFP)
-
4 × 10GE SFP+ (also supports GE SFP)
-
8 × GE SFP
-
16 × GE RJ45
-
2 × GE RJ45 MGMT/HA
-
Console + USB
Why it matters: you can build a clean core/DC edge design with 40G uplinks + 25G distribution and still have plenty of 1G copper + 1G fibre for mixed environments.
Scale & capacity (enterprise-ready numbers)
-
IPv4 firewall throughput (1518/512/64 UDP): 80 / 80 / 45 Gbps
-
Latency (64B UDP): 2.76 μs
-
Firewall throughput: 67.5 Mpps
-
Concurrent sessions: 8 million
-
New sessions/sec: 500,000
-
Firewall policies: 100,000
-
VDOMs: 10 default / 250 max
-
IPsec tunnels (G2G): 20,000
-
IPsec tunnels (Client): 100,000
-
Max FortiAPs: 4096 total / 2048 tunnel
-
Max FortiSwitches: 196
-
FortiTokens: 20,000
Hardware notes
-
SPU acceleration: NP6 + CP9
-
Form factor: 2RU
-
Redundant PSU: Yes (dual hot-swappable)
-
DC option available (FG-1100E-DC)
Model differences (SKU choice)
-
FG-1100E: no onboard SSD
-
FG-1101E: 2 × 480GB SSD (960GB total)
-
FG-1100E-DC: DC power model (no SSD)
View data sheet: FortiGate 1100E Series Data Sheet
