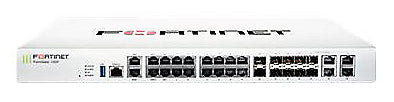

Fortinet FortiGate 100F Series (FG-100F / FG-101F / HA SKUs)
Branch / mid-market NGFW + Secure SD-WAN + Segmentation in 1RU, with lots of copper + 10G FortiLink uplinks.
The FortiGate 100F Series is a strong fit for:
-
SMB / mid-market head offices and branches
-
Secure SD-WAN (multi-WAN, application steering)
-
“All-in-one” edge: NGFW + IPS + SSL inspection + segmentation
-
Sites that want many RJ45 ports + 10G FortiLink for FortiSwitch integration
At-a-glance performance (Enterprise Traffic Mix)
-
IPS: 2.6 Gbps
-
NGFW: 1.6 Gbps
-
Threat Protection: 1.0 Gbps
-
SSL Inspection (IPS avg HTTPS): 1.0 Gbps
-
IPsec VPN (512B): 11.5 Gbps
-
SSL-VPN: 1.0 Gbps
Plain English: good for branch workloads and moderate inspection, but not a “data centre throughput” box like 200G/700G/900G.
Ports & interfaces (what customers care about)
From the hardware + ordering section you pasted:
-
22 × GE RJ45 total (includes 2× WAN, DMZ, Mgmt, 2× HA, and 16× switch ports)
-
4 × GE SFP
-
2 × 10GE SFP+ FortiLink (default)
-
4 × GE RJ45/SFP shared media pairs (handy flexibility)
This is a great “edge aggregation” layout: lots of copper ports for users/APs/switch uplinks plus 10G for FortiLink.
Model differences (important for SKU selection)
-
FG-100F: no onboard storage
-
FG-101F: 1× 480GB SSD (useful for local logging / reporting scenarios)
HA SKU:
-
FG-100F-HA: must be purchased in pairs, and enables a single service contract to cover the HA pair (per the text you provided).
Core capacity & scale
-
Firewall throughput (1518/512/64 UDP): 20 / 18 / 10 Gbps
-
Concurrent sessions: 1.5 million
-
New sessions/sec: 56,000
-
Firewall policies: 10,000
-
VDOMs: 10 / 10
-
FortiSwitch support: 32
-
FortiAP support: 128 total / 64 tunnel
-
Recommended SSL-VPN users: 500
Hardware notes
-
Uses Secure SD-WAN ASIC SP4 (Fortinet acceleration for app ID/steering + IPsec + SSL inspection improvements)
-
Dual AC power supplies, but non-hot swappable (still redundant, just not “swap live”)
View data sheet: FortiGate 100F Series Data Sheet
