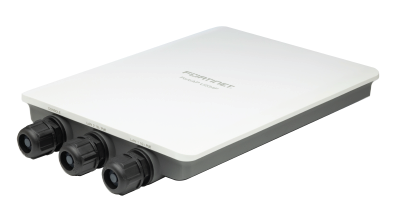

Fortinet FortiAP U234F
The FortiAP U234F is an enterprise-class Wi-Fi 6 (802.11ax) indoor access point designed to deliver secure, high-performance wireless connectivity for modern WLAN environments. It combines robust multi-user throughput with strong security integration and centralised management, making it suitable for enterprise offices, classrooms, retail venues, hospitality spaces, and distributed branch sites.
Overview
The FortiAP U234F provides:
-
Dual-band Wi-Fi 6 (802.11ax) support
-
3x3 MU-MIMO per band
-
OFDMA for efficient handling of many simultaneous clients
-
High aggregate wireless throughput for demanding environments
-
Multigigabit Ethernet uplink support
-
Integrated Bluetooth Low Energy (BLE) for location services and IoT applications
-
802.3at Power over Ethernet (PoE) support
-
WPA3/WPA2 Enterprise security
-
Limited lifetime hardware warranty
This model is designed to deliver reliable, scalable wireless access with advanced security control and streamlined centralised management.
Wireless Capabilities
-
2.4 GHz and 5 GHz radios with Wi-Fi 6 technology
-
3x3 MU-MIMO on both bands to support multiple spatial streams concurrently
-
OFDMA for improved network efficiency with dense client populations
-
Support for 20/40/80 MHz channels
-
WPA3 Enterprise and WPA2 security
-
802.1X authentication (EAP-TLS, PEAP, EAP-TTLS) for secure access
Interfaces
-
1 x multigigabit Ethernet uplink (100 M / 1 G / 2.5 G)
-
1 x RJ45 serial console port
-
Powered via 802.3at PoE
-
Enterprise-class power consumption suitable for ceiling or wall-mount installations
Security and Management
The FortiAP U234F integrates seamlessly into the Fortinet Security Fabric and supports centralised management via:
-
FortiGate wireless controller
-
FortiEdge Cloud
-
FortiSASE
Key security and analytics features include:
-
WPA3 Enterprise encryption
-
802.1X authentication and access control
-
Rogue AP detection
-
Real-time background scanning and spectrum analysis
-
Centralised policy enforcement and end-to-end visibility across wired and wireless infrastructure
Ideal Use Cases
Enterprise Office
Delivers scalable Wi-Fi 6 performance with efficient multi-client support for busy corporate environments.
Education & Campus
Supports classrooms, lecture halls, and learning spaces with reliable, secure wireless access.
Retail & Hospitality
Provides secure segmented networks for staff and guest users in high-traffic environments.
Branch & Distributed Sites
Offers centralised control and strong Wi-Fi 6 throughput for multi-location deployments.
The FortiAP U234F combines enterprise-grade Wi-Fi 6 capacity, multi-user efficiency, and integrated security management - a strong choice for organisations seeking scalable, secure wireless access in demanding indoor environments.
