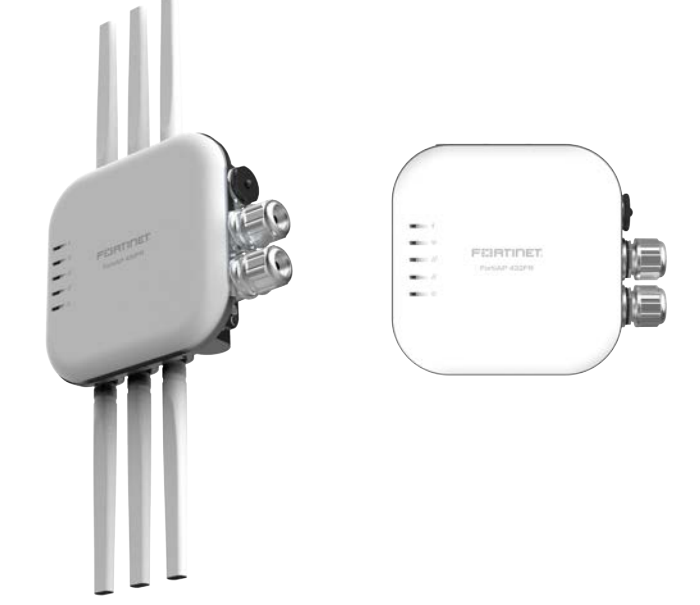

Fortinet FortiAP 432FR
The FortiAP 432FR is an industrial-grade wireless access point designed for rugged indoor/outdoor environments requiring robust, secure, and resilient Wi-Fi 6 connectivity. It combines enterprise-class wireless performance with hardened hardware and extended environmental tolerance, making it suitable for industrial facilities, transportation hubs, warehouses, manufacturing floors, and other harsh locations. It integrates seamlessly with the Fortinet Security Fabric and can be centrally managed through FortiGate controllers, FortiEdge Cloud, or FortiSASE for unified policy, security, and visibility across wired and wireless networks.
Overview
The FortiAP 432FR delivers:
-
Wi-Fi 6 (802.11ax) dual-band wireless support
-
4×4 MU-MIMO per band for high throughput and multi-user capacity
-
OFDMA for efficient handling of many simultaneous clients
-
Hardened industrial enclosure with extended temperature range
-
Multigigabit Ethernet uplink
-
Integrated Bluetooth (BLE) for location services and IoT applications
-
802.3at PoE power support
-
WPA3/WPA2 Enterprise security
-
Limited lifetime hardware warranty
This model is engineered to bridge enterprise Wi-Fi performance with industrial reliability, allowing secure and resilient wireless access in environments with vibration, dust, moisture, or fluctuating temperatures.
Wireless Capabilities
-
Dual-band Wi-Fi 6 (802.11ax) radios covering 2.4 GHz and 5 GHz
-
4×4 MU-MIMO on both bands for improved capacity and spatial throughput
-
OFDMA and UL/DL MU-MIMO technologies for efficient multi-client operation
-
Support for 20/40/80 MHz channel widths
-
WPA3 Enterprise and WPA2 security protocols
-
802.1X authentication (EAP-TLS, PEAP, EAP-TTLS) for secure network access
Interfaces and Power
-
1 × Multigigabit Ethernet uplink (100 M / 1 G / 2.5 G)
-
1 × RJ45 serial console port
-
Powered via 802.3at PoE
-
Designed with industrial power tolerance and surge protection fitting harsh sites
Industrial Features
The FortiAP 432FR is built for reliable operation in tough conditions:
-
Ruggedised enclosure resistant to dust and vibration
-
Extended operating temperature range beyond typical commercial AP limits
-
Operational tolerance for industrial electrical environments
-
Mounting options for walls, poles, or industrial racks
-
Integrated BLE for analytics, asset tracking, and proximity services
Security and Management
The FortiAP 432FR integrates with the Fortinet Security Fabric and supports centralised wireless management via:
-
FortiGate wireless controller
-
FortiEdge Cloud
-
FortiSASE
Security and analytics features include:
-
WPA3 Enterprise encryption for strong wireless security
-
802.1X authentication and access control
-
Rogue AP detection and wireless intrusion awareness
-
Background scanning and spectrum analysis for RF health
-
Centralised policy enforcement and visibility across wired and wireless networks
Ideal Use Cases
Industrial Facilities
Delivers resilient Wi-Fi 6 performance in manufacturing floors, warehouses, plants, and processing environments.
Transportation and Logistics
Supports high throughput and coverage across terminals, loading docks, and storage yards.
Retail and Large Public Venues
Handles high client density with secure segmentation for staff, guests, and IoT devices.
Enterprise Edge and Harsh Installations
Offers extended temperature support and robust build quality where commercial APs are unsuitable.
The FortiAP 432FR brings enterprise Wi-Fi 6 capability to industrial and challenging environments — combining high throughput, multi-user efficiency, rugged reliability, and integrated security management for mission-critical wireless access.
