Description

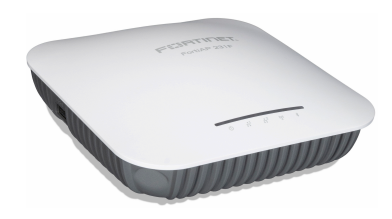

Fortinet FortiAP 231F
The FortiAP 231F is a high-performance Wi-Fi 6 (802.11ax) indoor access point designed for enterprise, education, retail, and branch environments that demand secure, scalable wireless connectivity. It combines advanced multi-user performance with integrated security and seamless centralised management through FortiGate controllers, FortiEdge Cloud, or FortiSASE, making it well suited for modern WLAN deployments with varied client densities.
Overview
The FortiAP 231F delivers:
-
Dual-band Wi-Fi 6 (802.11ax) support
-
2x2 MU-MIMO per band
-
OFDMA for efficient performance with many connected devices
-
Balanced aggregate throughput for typical enterprise access use cases
-
Multigigabit Ethernet uplink capability
-
Integrated Bluetooth Low Energy (BLE) for location services and IoT applications
-
802.3at Power over Ethernet (PoE) support
-
WPA3/WPA2 Enterprise security
-
Limited lifetime hardware warranty
This model is ideal for environments such as offices, classrooms, retail spaces, and distributed branches where reliable Wi-Fi 6 performance, strong security, and simple management are required.
Wireless Capabilities
-
2.4 GHz and 5 GHz radios with Wi-Fi 6 technology
-
2x2 MU-MIMO on both bands for improved spatial throughput
-
OFDMA to increase efficiency with large client counts
-
Support for 20/40/80 MHz channels
-
WPA3 Enterprise and WPA2 encryption support
-
802.1X authentication (EAP-TLS, PEAP, EAP-TTLS)
Interfaces
-
1 x Multigigabit Ethernet uplink (100 M / 1 G / 2.5 G)
-
1 x RJ45 serial console port
-
Powered via 802.3at PoE
-
Typical enterprise-class power consumption suitable for ceiling or wall installation
Security and Management
The FortiAP 231F integrates tightly with the Fortinet Security Fabric and supports centralised management via:
-
FortiGate wireless controller
-
FortiEdge Cloud
-
FortiSASE
Security and analytics features include:
-
WPA3 Enterprise encryption
-
802.1X authentication and access control
-
Rogue AP detection
-
Background scanning and spectrum monitoring
-
Centralised policy enforcement and visibility across wired and wireless environments
Ideal Use Cases
Enterprise Office
Provides reliable throughput and efficient multi-client support for standard corporate workspaces.
Education & Campus
Supports classrooms, labs, and learning areas with secure, efficient wireless performance.
Retail & Hospitality
Delivers secure segmented access for both staff and guest wireless networks.
Branch & Distributed Sites
Offers centralised management with strong Wi-Fi 6 performance for multi-location deployments.
The FortiAP 231F offers enterprise-grade Wi-Fi 6 performance with efficient multi-user support and integrated security management a strong choice for organisations modernising their wireless infrastructure while maintaining robust security and policy control.
View data sheet: FortiAP Series Access Points Data Sheet
