Description

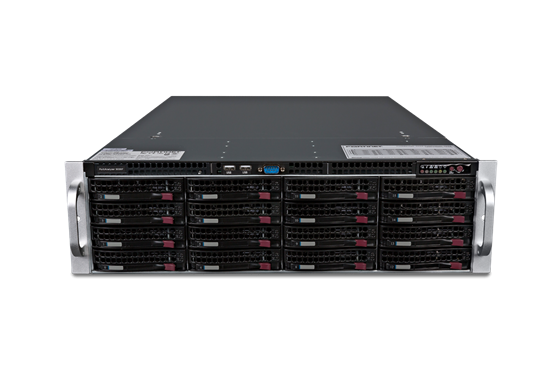

Fortinet FortiAnalyzer 3750G Appliance
Capacity & Performance
- GB/day of logs: 8,300
- Analytic sustained rate: 100,000 logs/sec
- Collector sustained rate: 150,000 logs/sec
- Devices/VDOMs (maximum): 10,000
- Max number of days analytics: 60
Hardware Specifications
Form Factor
- 4 RU Rackmount
Network Interfaces
- 2x 10GbE RJ45
- 2x 25GbE SFP28
Storage
- Raw storage:
- 384 TB HDD (24x 16TB)
- 60 TB NVMe SSD (4x 15TB)
- Usable after RAID: 305 TB
Storage RAID
- RAID levels supported: 0/1, 1s/5, 5s/6, 6s/10/50/60
- RAID type: Hardware / Hot Swappable
Physical & Power
Dimensions
- 7.0 x 17.2 x 30.2 inches
- 17.8 x 43.7 x 76.7 cm
Weight
- 118 lbs (53.5 kg)
Power
- AC power: 200240V
- Power consumption: 850W / 1,423.4W (avg/max)
Thermal
- Heat dissipation: 4,858 BTU/h
Environment
- Operating temp: 50°F to 95°F (10°C to 35°C)
- Storage temp: -40°F to 158°F (-40°C to 70°C)
- Humidity: 8% to 90% (non-condensing)
- Airflow: Front to Back
- Operating altitude: Up to 10,000 ft (3,048 m)
Certifications
- FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
View data sheet: FortiAnalyzer Data Sheet
