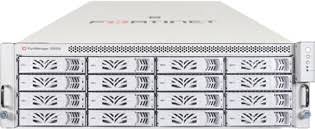

Fortinet FortiAnalyzer 3100G Appliance

Fortinet FortiAnalyzer 3100G (FAZ-3100G)

Capacity & Performance

• Log capacity: 3,000 GB/day
• Analytic sustained rate: 42,000 logs/sec
• Collector sustained rate: 60,000 logs/sec
• Max devices/VDOMs: 4,000
• Max number of days analytics: 30 days

Hardware Specs

• Form factor: 3 RU rackmount
• Interfaces: 2x GE RJ45 + 2x 25GE SFP28
• Storage (raw): 64 TB (16x 4TB) 3.5" SAS SED HDD + 3.84 TB (2x 1.92TB) 2.5" NVMe SSD
• Usable storage: 56 TB
• RAID supported: 0/1, 1s / 5, 5s / 6, 6s / 10 / 50 / 60
• RAID type: Hardware / Hot swappable
• Default RAID level: 50

Physical

• Dimensions: 5.2 x 17.2 x 25.5 in (13.0 x 44.0 x 65.0 cm)
• Weight: 69.6 lbs (31.57 kg)

Power & Environment

• Power input: 100–127V~/10A, 200–240V~/5A
• Power consumption: 395W avg / 510W max
• Heat dissipation: 1,740.19 BTU/h
• Operating temp: 32°F to 104°F (0°C to 40°C)
• Storage temp: -4°F to 158°F (-20°C to 70°C)
• Humidity: 5% to 95% (non-condensing)
• Airflow: Front to back
• Operating altitude: Up to 13,123 ft (4,000 m)
• Safety certifications: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

View data sheet: FortiAnalyzer Data Sheet
